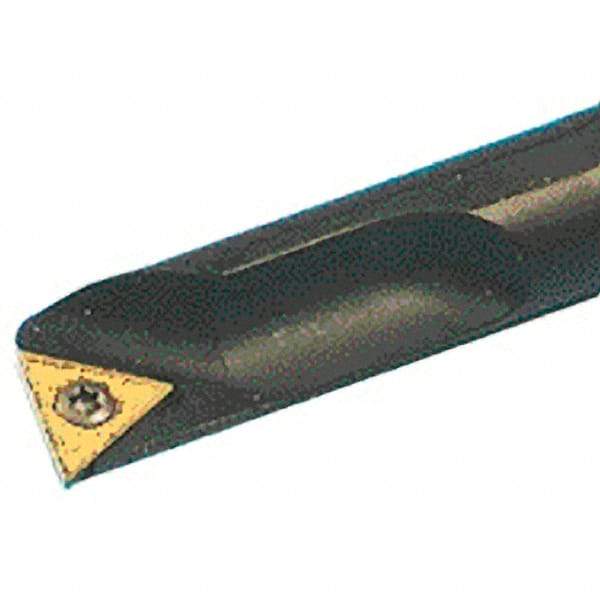

Iscar - 14mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, S-STLP Indexable Boring Bar - 27mm Max Bore Depth, TPG.. 1102.. Insert, Screw Holding Method
Item #: 91111534
Brand: Iscar
Model #: 3601059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STLP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 14.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 27.00 |
| Overall Length (mm) | 150.00 |
| Shank Diameter (mm) | 12.00 |
| Insert Compatibility | TPG.. 1102.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Insert Inscribed Circle (mm) | 6.35 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGB 110204; TPGB 110204-XL; TPGH 110204-L; TPGH 110204-XL; TPGH 110208-L |
| Toolholder Material | Steel |
