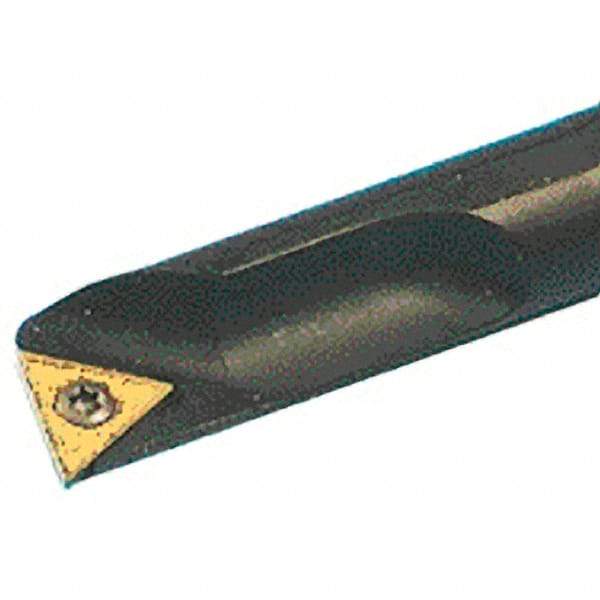

Iscar - 21.5mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, S-STLP Indexable Boring Bar - 63mm Max Bore Depth, TP.. 1603.. Insert, Screw Holding Method
Item #: 91111526
Brand: Iscar
Model #: 3601061
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STLP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 21.50 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 63.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | TP.. 1603.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 10.20 |
| Insert Inscribed Circle (mm) | 9.52 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGB 160304-60; TPGB 160308-60; TPGH 160304-L; TPGH 160308-L; TPMT 160304 |
| Toolholder Material | Steel |
