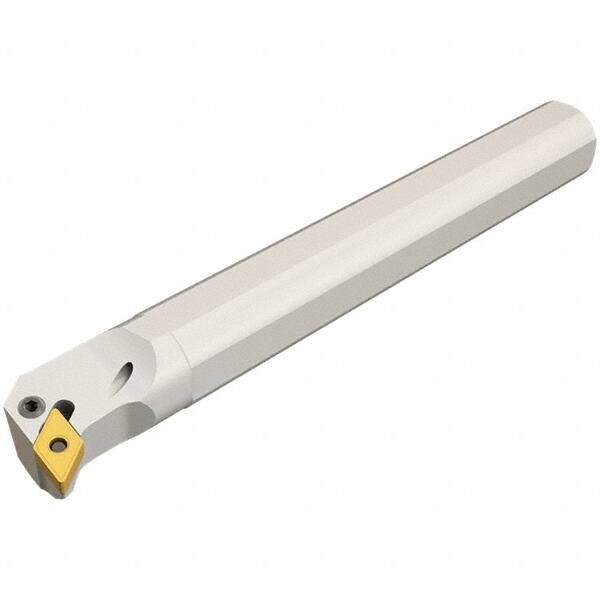

Iscar - 50mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, S-PDUN Indexable Boring Bar - 50mm Max Bore Depth, DNMG 15.. Insert, Clamp Holding Method
Item #: 91111385
Brand: Iscar
Model #: 3601115
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PDUN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 50.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Overall Length (mm) | 350.00 |
| Shank Diameter (mm) | 40.00 |
| Insert Compatibility | DNMG 15.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -11.5 |
| Complete Insert Compatibility | DNMG 150404-NF; DNMG 150408-GN; DNMG 150412-GN; DNMG 150608-GN; DNMG 150612-GN |
| Toolholder Material | Steel |
