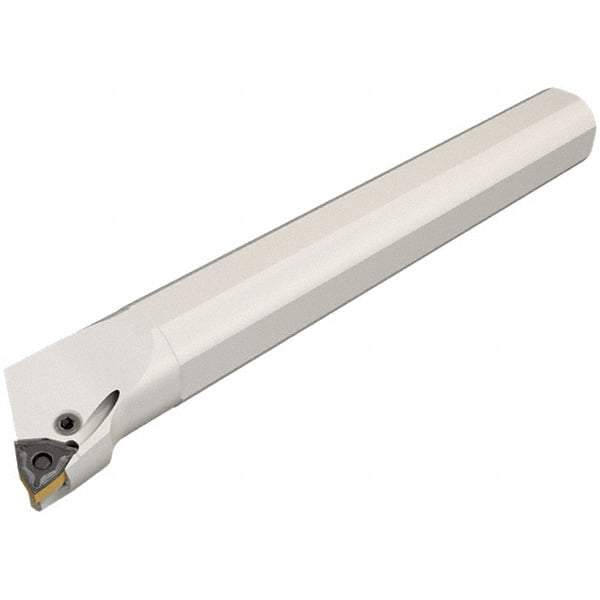

Iscar - 20mm Min Bore Diam, 180mm OAL, 16mm Shank Diam, S-PWLN Indexable Boring Bar - 27mm Max Bore Depth, WNM.. 06T3.. Insert, Clamp Holding Method
Item #: 91111351
Brand: Iscar
Model #: 3601138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PWLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 20.00 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 27.00 |
| Overall Length (mm) | 180.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Compatibility | WNM.. 06T3.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Decimal Inch) | 0.1500 |
| Insert Inscribed Circle (mm) | 9.52 |
| Rake Angle | -14 |
| Complete Insert Compatibility | WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 06T304-GN; WNMG 06T308-GN |
| Toolholder Material | Steel |
