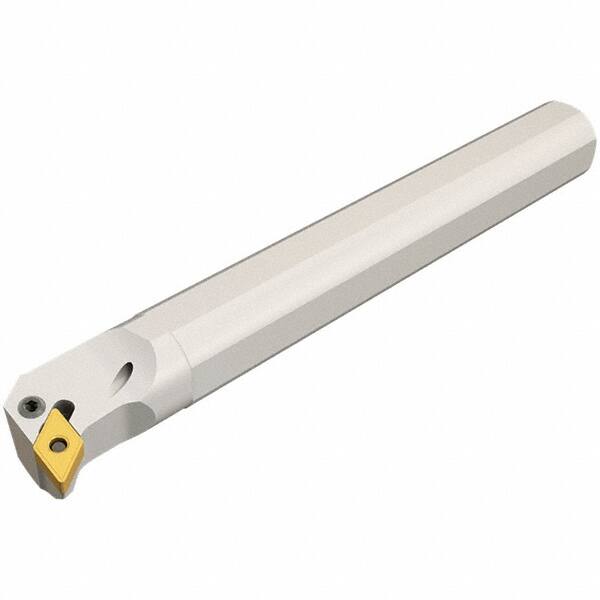

Iscar - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-PDUN Indexable Boring Bar - 45mm Max Bore Depth, DNMG 1104.. Insert, Clamp Holding Method
Item #: 91111294
Brand: Iscar
Model #: 3601166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PDUN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 40.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 45.00 |
| Overall Length (mm) | 250.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Compatibility | DNMG 1104.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Inscribed Circle (mm) | 9.52 |
| Rake Angle | -11 |
| Complete Insert Compatibility | DNMG 110402-NF; DNMG 110404-NF; DNMG 110408-GN; DNMG 110412-GN |
| Toolholder Material | Steel |
