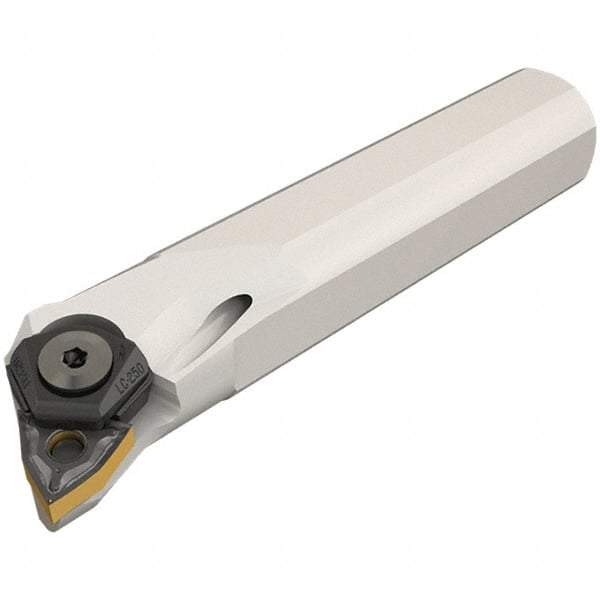

Iscar - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, S-MWLN Indexable Boring Bar - 28mm Max Bore Depth, WN.. 0804.. Insert, Wedge Holding Method
Item #: 91111237
Brand: Iscar
Model #: 3601307
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MWLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 25.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.00 |
| Overall Length (mm) | 250.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | WN.. 0804.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Positive |
| Center to Cutting Edge (mm) | 13.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | 10 |
| Complete Insert Compatibility | WN..08.. |
| Toolholder Material | Steel |
