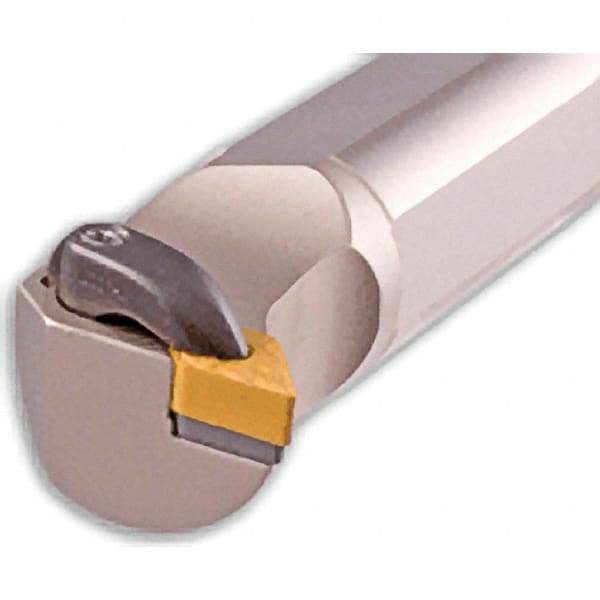

Iscar - 48mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, S-DDUN Indexable Boring Bar - 50mm Max Bore Depth, DNM.. 15.. Insert, Clamp Holding Method
Item #: 91110874
Brand: Iscar
Model #: 3602580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-DDUN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 48.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Overall Length (mm) | 350.00 |
| Shank Diameter (mm) | 40.00 |
| Insert Compatibility | DNM.. 15.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -10 |
| Complete Insert Compatibility | DNMA 150412; DNMA 150608; DNMA 150612; DNMG 150408-GN; DNMG 150412-GN |
| Toolholder Material | Steel |
