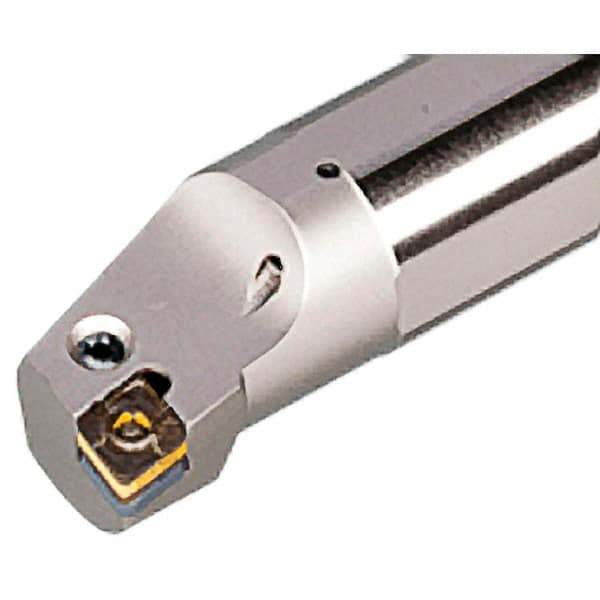

Iscar - 50mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-PCLN Indexable Boring Bar - 51mm Max Bore Depth, CNMX 1207.. Insert, Clamp Holding Method
Item #: 91110825
Brand: Iscar
Model #: 3602744
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PCLN |
| Series | Heliturn LD |
| Minimum Bore Diameter (mm) | 50.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 51.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Compatibility | CNMX 1207.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 21.00 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -14 |
| Complete Insert Compatibility | CNMX 120704-M4MW; CNMX 120708-HTW; CNMX 120708-M4MW; CNMX 120712-HTW; CNMX 120712-M4MW; CNMX 120716-HTW |
| Toolholder Material | Steel |
