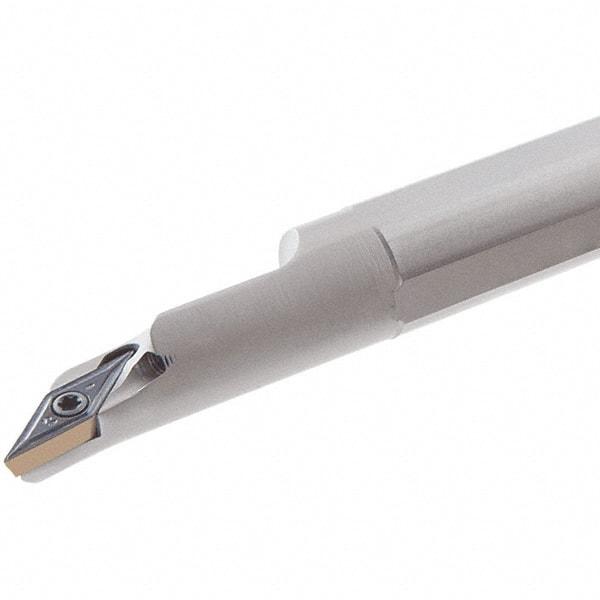

Iscar - 19mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, S-SVJC Indexable Boring Bar - 20mm Max Bore Depth, VC.T 1103.. Insert, Screw Holding Method
Item #: 91110692
Brand: Iscar
Model #: 3695394
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SVJC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 19.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Compatibility | VC.T 1103.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Inscribed Circle (mm) | 6.35 |
| Rake Angle | -4 |
| Complete Insert Compatibility | VCET 1103005R-WF; VCGT 110302-AS; VCGT 110304-AS; VCMT 110302-SM; VCMT 110304-SM; VCMT 110308-SMV |
| Toolholder Material | Steel |
