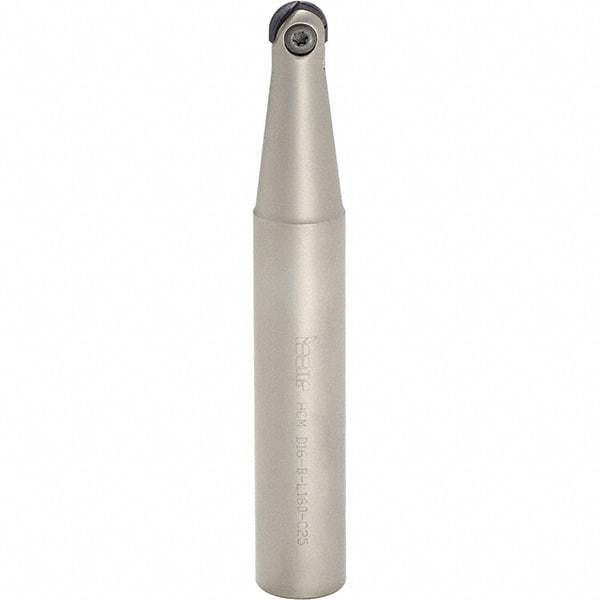

Iscar - 5/8" Cut Diam, 3/4" Shank Diam, 6-1/2" OAL, Indexable Ball Nose End Mill - 2-1/2" Head Length, Straight Shank, HCM D.62 Toolholder, HBF-QF, HBR-QF, HCD-QF, HCR Insert
Item #: 91108704
Brand: Iscar
Model #: 3103603
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF-QF; HBR-QF; HCD-QF; HCR |
| Toolholder Style | HCM D.62 |
| Series | BallPlus |
| Overall Length (Decimal Inch) | 6.5000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 2.5000 |
