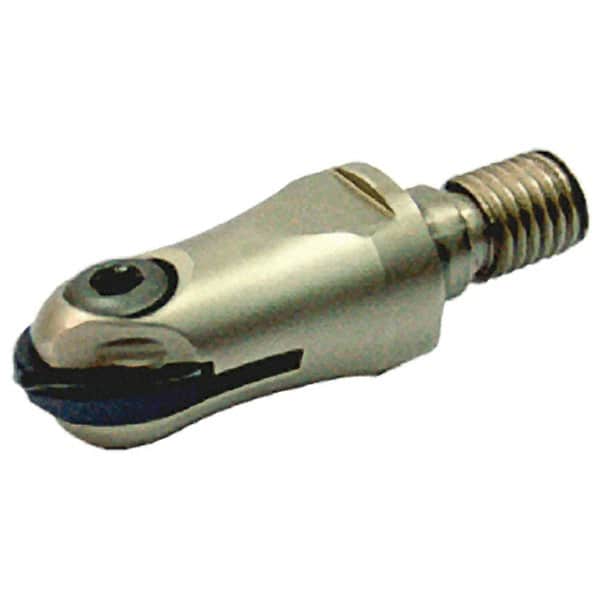

Iscar - 1" Cut Diam, 71mm OAL, Indexable Ball Nose End Mill - 46mm Head Length, M16 Modular Connection, HCM-M Toolholder, HBF-QF, HBR-QF, HCD-QF, HCR Insert
Item #: 91108597
Brand: Iscar
Model #: 3104178
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF-QF; HBR-QF; HCD-QF; HCR |
| Toolholder Style | HCM-M |
| Series | BallPlus; FlexFit |
| Overall Length (mm) | 71.00 |
| Overall Length (Decimal Inch) | 2.7953 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Number of Flutes | 1 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Neck Diameter (Decimal Inch) | 1.1420 |
