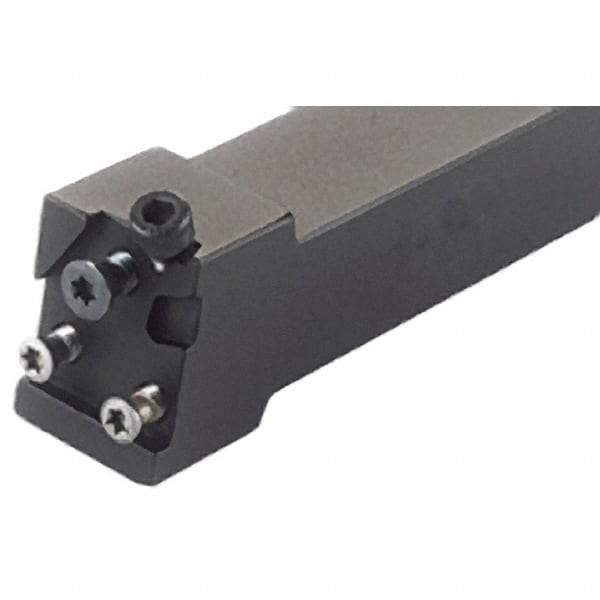

Iscar - MAHP, External, Left Hand, Indexable Grooving Tool Holder - 20mm Shank Height, 20mm Shank Width, 5-1/2" OAL
Item #: 91105346
Brand: Iscar
Model #: 2801272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 139.70 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Toolholder Style | MAHP |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Modular Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Insert Holding Method | Clamp |
| Head Length (mm) | 25.00 |
| Shank Length (mm) | 115.00 |
