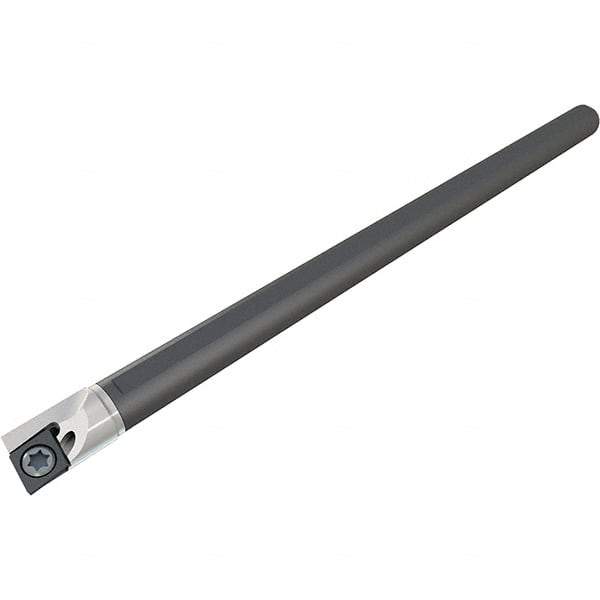

Iscar - Right Hand Cut, 0.787" Min Bore Diam, Size 10-2 Carbide Modular Boring Cutting Unit Head - 1.17" Max Bore Depth, Through Coolant, Compatible with DCET-WF, DCGT-AS, DCGW/DCMW-M2/S2 (CBN), DCMT-PF, DCMT/DCGT, DCMT/DCGT-SM
Item #: 91105320
Brand: Iscar
Model #: 3602218
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 10-2 |
| Series Name | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.1700 |
| Insert Style | DCET-WF; DCGT-AS; DCGW/DCMW-M2/S2 (CBN); DCMT-PF; DCMT/DCGT; DCMT/DCGT-SM |
| Head Length/Projection (Decimal Inch) | 1.1700 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (Decimal Inch) | 0.4300 |
| Head Diameter Excluding Insert (Decimal Inch) | 0.6250 |
| Complete Insert Compatibility | DCGT 2-.004R; DCGT 2-0; DCGT 2-1; DCMT 2-0; DCMT 2-1 |
