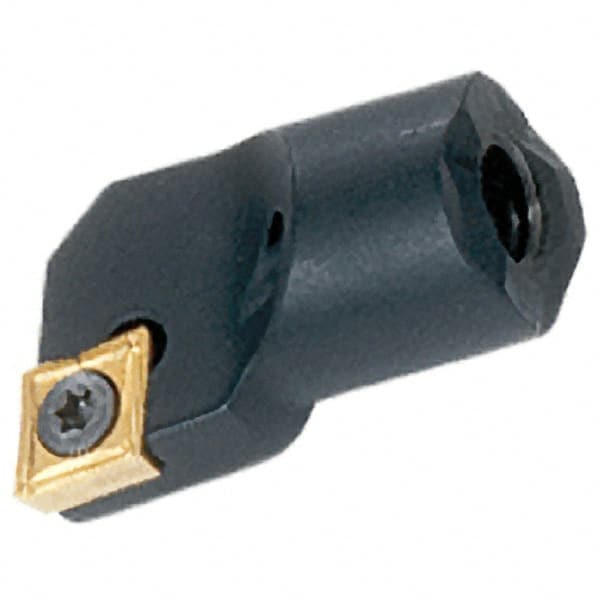

Iscar - Size E16, 2mm Min Diam, 37mm Max Depth, Right Hand Modular Boring Cutting Unit Head
Item #: 91105312
Brand: Iscar
Model #: 3602209
Product Specifications
| System Size | E16 |
| Series Name | Isoturn |
| Minimum Bore Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 37.00 |
| Insert Style | CCET-WF; CCGT-AF; CCGT-AS; CCGW/CCMW-M2 (CBN); CCMT (CBN); CCMT (PCD); CCMT-14; CCMT-PF; CCMT-WG; CCMT/CCGT; CCMT/CCGT-SM |
| Head Length/Projection (mm) | 37.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 11.00 |
| Head Diameter Excluding Insert (mm) | 16.00 |
| Complete Insert Compatibility | CCMT 09T302; CCMT 09T304; CCMT 09T304-14; CCMT 09T308; CCMT 09T308-14 |
