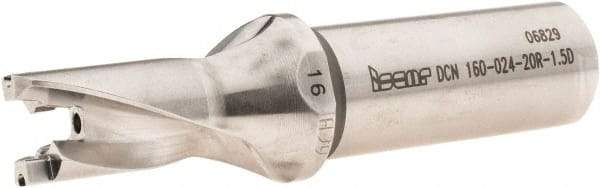

Iscar - 16mm to 16.9mm Diam, 1.5xD, 24mm Max Depth, 20mm Shank Diam, 99.3mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 16 Seat Size, 91104885 Toolholder, Series SumoCham
Item #: 91104885
Brand: Iscar
Model #: 3202689
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 24.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 16 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 49.30 |
| Overall Length (mm) | 99.30 |
| Shank Length (mm) | 50.00 |
