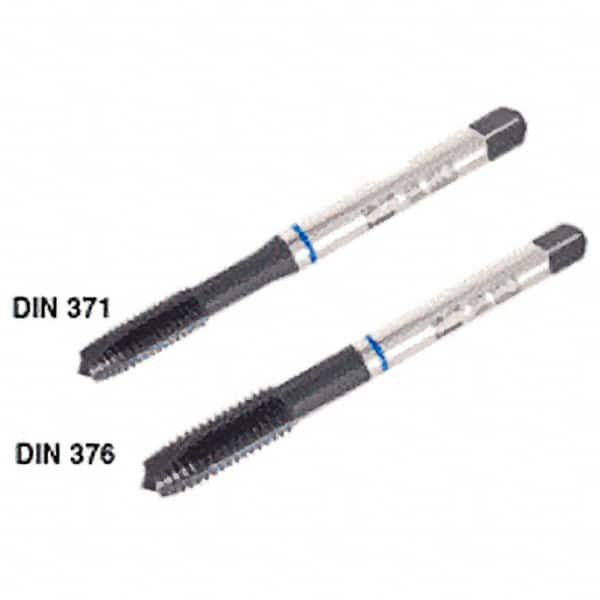

Iscar - M12x1.75 Metric Coarse 6HX 4 Flute High Speed Steel Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 110mm OAL, 24mm Thread Length, Oversize
Item #: 91102137
Brand: Iscar
Model #: 4445156
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M12x1.75 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (mm) | 110.00 |
| Oversize | No |
| Series/List | TP7 |
| Thread Length (mm) | 24.00 |
| Shank Diameter (mm) | 9.00 |
| Square Size (mm) | 7.00 |
