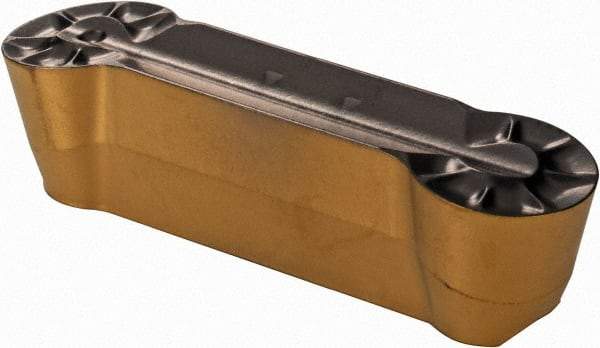

Iscar - 840GDMY Grade IC830, 8mm Cutting Width Carbide Grooving Insert - 25mm Max Depth of Cut, Neutral, 4mm Corner Radius, TiN/TiAlN Finish
Item #: 91069138
Brand: Iscar
Model #: 6405098
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDMY |
| Insert Size | 840 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Manufacturer's Grade | IC830 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.40 |
| Cutting Height (Decimal Inch) | 0.2520 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Grooving; Profiling |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
| ISO Number | GDMY 840 |
| Manufacturers Catalog Number | GDMY 840 |
