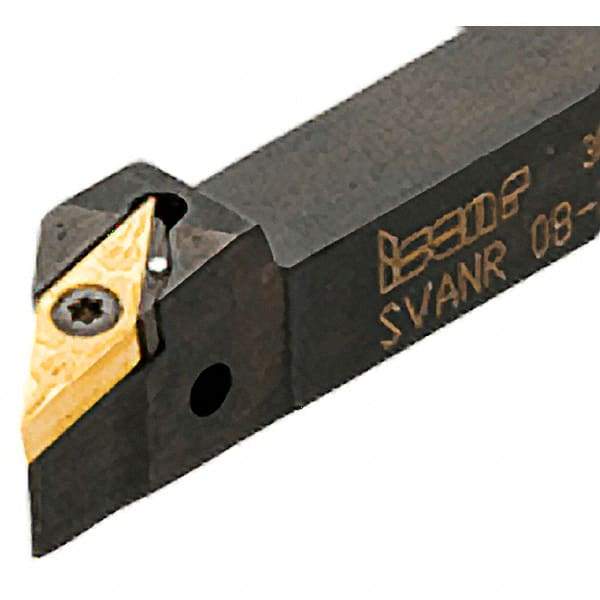

Iscar - VN.. 2.5.., 93° Lead Angle SVAN External Right Hand Indexable Profiling Toolholder - 1/2" Shank Height x 1/2" Shank Width, 3-1/2" Long
Item #: 91056457
Brand: Iscar
Model #: 3691811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Rake | Negative |
| Insert Compatibility | VN.. 2.5.. |
| Toolholder Style | SVAN |
| Series | Isoturn |
| Through Coolant | No |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Insert Holding Method | Screw |
| Rake Angle | -12 |
| Lead Angle | 93 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Decimal Inch) | 0.2810 |
| Complete Insert Compatibility | VNGG 2.5-0-NF; VNGG 2.5-1-NF; VNMG 2.5-0-NF; VNMG 2.5-0-SF; VNMG 2.5-1-NF; VNMG 2.5-1-SF; VNMG 2.5-2-NF; VNMM 2.5-1-PP; VNMM 2.5-2-PP |
