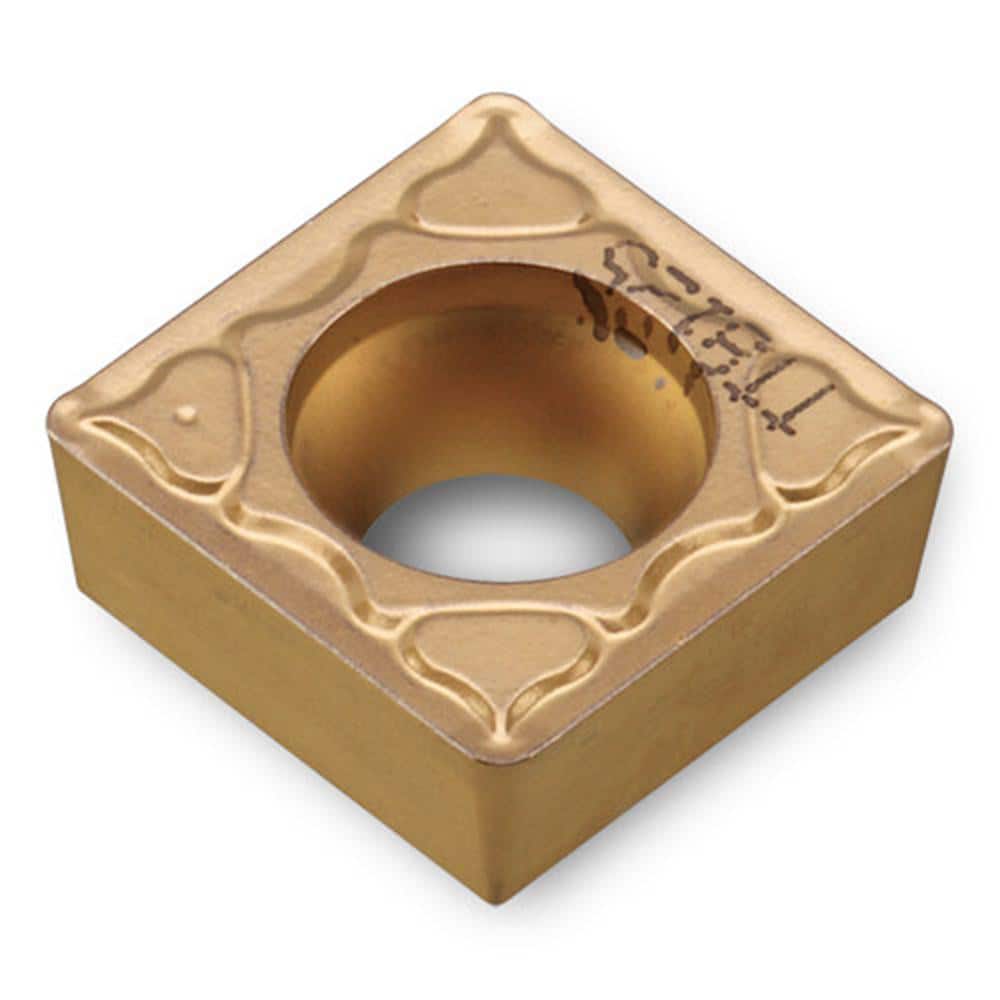

Milling Insert
Item #: 91048231
Brand: Ingersoll Cutting Tools
Model #: 5522864
Product Specifications
| Insert Style | SCMT |
| Insert Shape Code | S |
| Insert Size Code | 431 |
| Insert Shape | Square |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9080 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 90.0 |
| Relief Angle | 7 |
| Series | SCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4840 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SCMT431PCTT9080 |
| Iso Code | SCMT120404PC TT9080 |
| Chip Breaker | PC |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | AlTiN; TiN |
