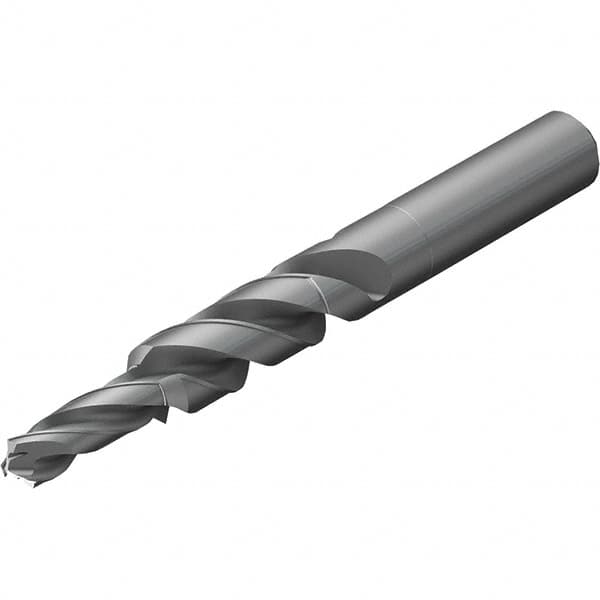

10.2mm Minor 16mm Major 30.6mm Step Length 135° Solid Carbide Subland Step Drill Bit Bright/Uncoated, 78.6mm Flute Length, 56mm OAL, Series CoroDrill 430
Item #: 90992298
Brand: Sandvik Coromant
Model #: 7594117
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Cut Tap Thread Size (mm) | M12 x 1.75 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 1.2047 |
| Step Length (mm) | 30.60 |
| Minor Diameter (Decimal Inch) | 0.4016 |
| Minor Diameter (mm) | 10.20 |
| Through Coolant | Yes |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Shoulder Included Angle | 90 |
| Series | CoroDrill 430 |
| Major Diameter (Decimal Inch) | 0.6299 |
| Major Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Drill Point Angle | 135 |
| Flute Length (mm) | 78.60 |
| Number Of Flutes | 3 |
| Manufacturers Grade | N1BU |
