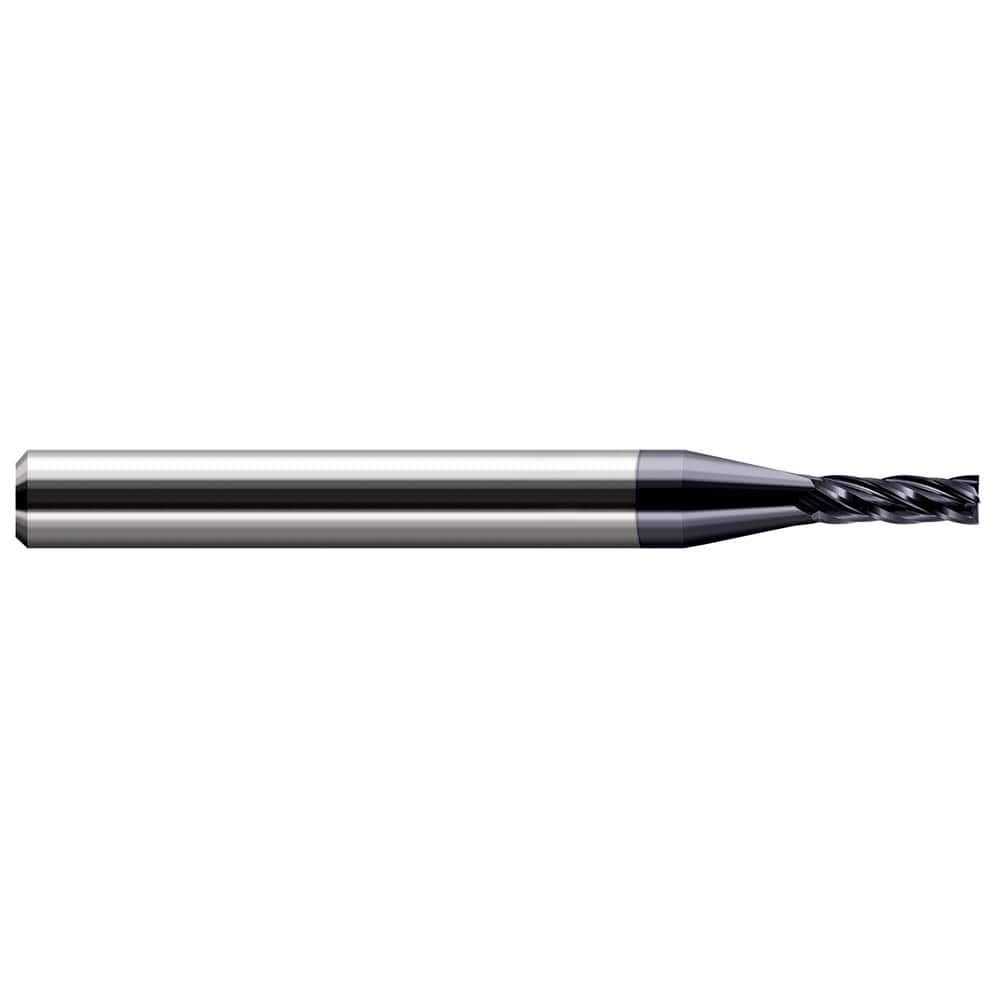

Square End Mill: 0.059'' Dia, 0.177'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 3 Flutes, Solid Carbide Single End, AlTiN Finish, 30 ° Helix, RH Cut, RH Flute
Item #: 90766973
Brand: Harvey Tool
Model #: 836359-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0590 |
| Mill Diameter (mm) | 1.50 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 4.50 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 30 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Length of Cut (Decimal Inch) | 0.1770 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
