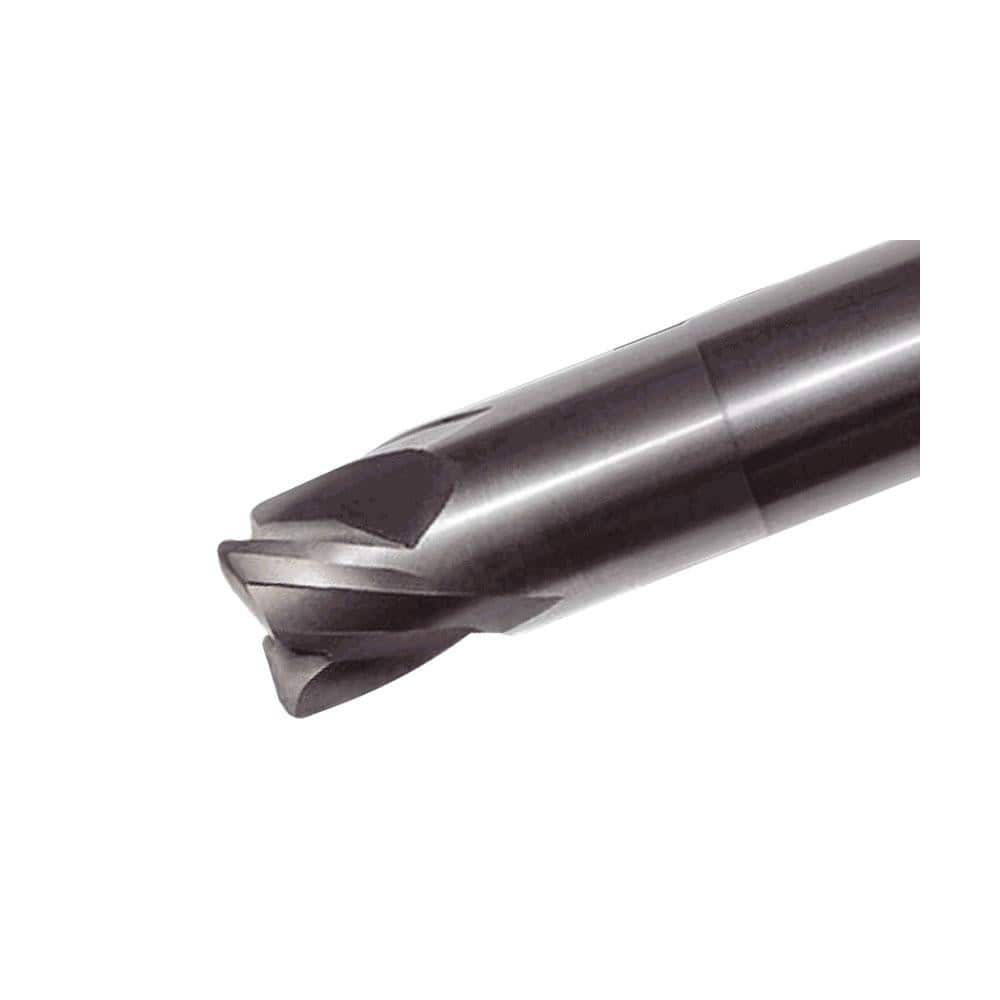

Corner Radius End Mill: 0.314″ Dia, 0.767″ LOC, 0.022″ Radius, 3 Flutes Helix, Bright/Uncoated, Corner Radius End, Series Solid Mill
Item #: 90766353
Brand: Iscar
Model #: 5877468
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3140; 0.314 in; 8.0 mm |
| Mill Diameter (Inch) | 0.314 in; 8.0 mm |
| Mill Diameter (mm) | 8.00 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.56 |
| Corner Radius (Decimal Inch) | 0.0220 |
| Number of Flutes | 3 |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 19.50 |
| Length of Cut (Decimal Inch) | 0.7670 |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Inch) | 8.0 mm |
| Overall Length (Inch) | 57.0 mm |
| Overall Length (mm) | 57.00; 57.0 mm |
| Extended Reach | No |
| Chipbreaker | No |
| Shank Type | Straight-Cylindrical |
| Reach Length (Decimal Inch) | 19.5 mm |
| Reach Length (Inch) | 19.5 mm |
| Neck Diameter (Decimal Inch) | 7.5 mm; 7.50 |
| Single or Double End | Single |
| Length Type | Stub |
| Shank Diameter Tolerance (Decimal Inch) | 8.0 mm |
| Series/List | Solid Mill |
