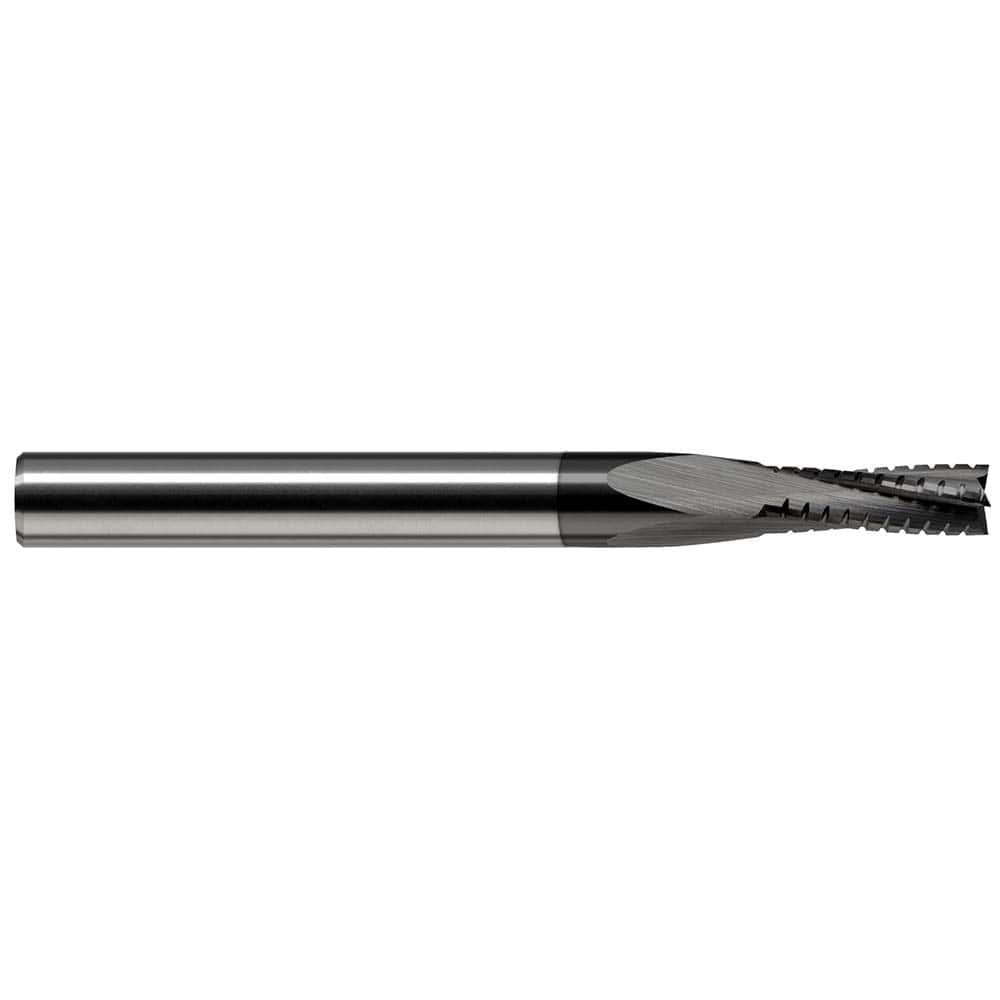

Harvey Tool - Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide ; Finish/Coating: Amorphous Diamond
Item #: 90762451
Brand: Harvey Tool
Model #: 969324-C4
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide ; Finish/Coating: Amorphous Diamond
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material | Solid Carbide |
| Finish/Coating | Amorphous Diamond |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 12 |
| Variable Helix | No |
| Chipbreaker | Yes |
| Series/List | End Mills for Composites - Chipbreaker Cutter |
