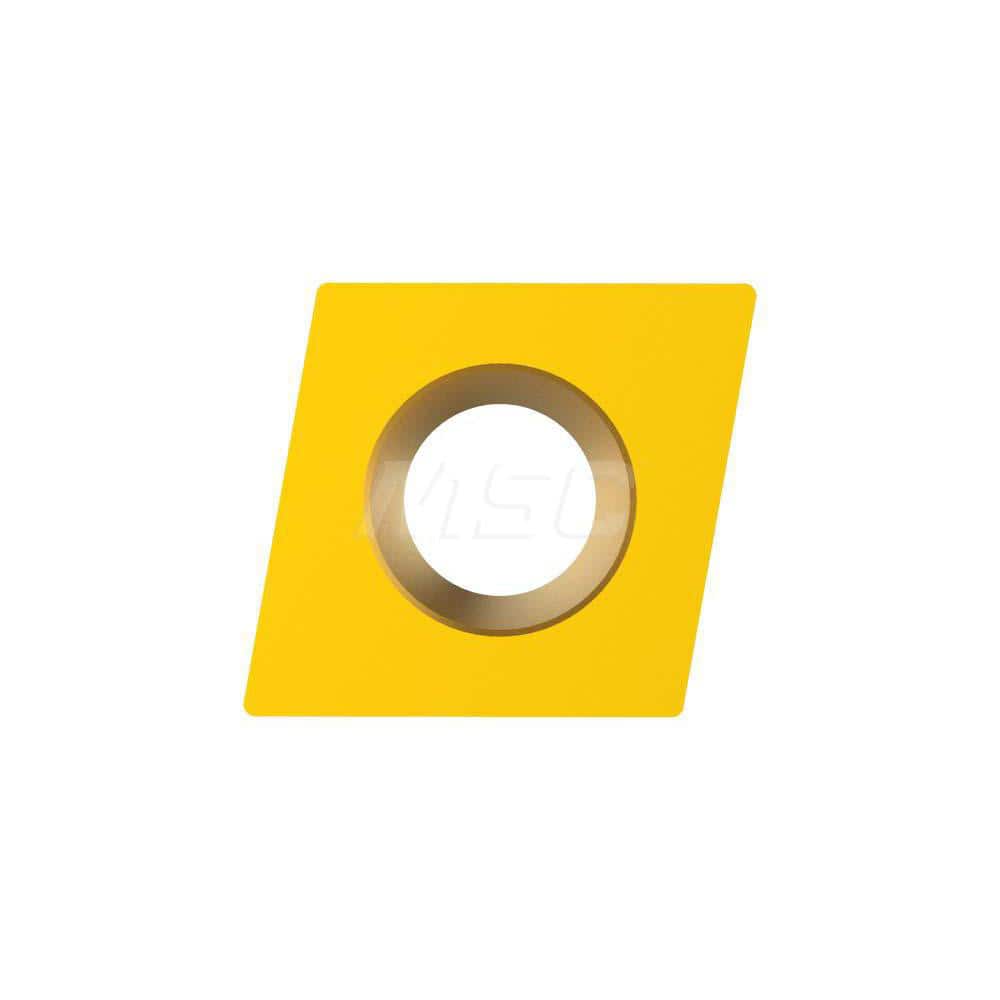

Boring Insert: CCMT09T302PSMKN BK50, Solid Carbide Coated, 80 ° Diamond, 0.008″ Corner Radius, 0.375″ Inscribed Circle, 0.156″ Thick, 7 ° Relief
Item #: 90739541
Brand: Criterion
Model #: CCMT09T302
Product Specifications
| Insert Style | CCMT |
| Insert Size Code | 09T302 |
| Insert Material | Solid Carbide |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Manufacturer Grade | BK50 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Relief Angle | 7 |
| Chipbreaker | PSMKN |
| Series | CCMT |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Ansi Code | CCMT21505 |
| Iso Code | CCMT09T302 |
| Standards | ISO; ANSI |
| Shape | Diamond |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
