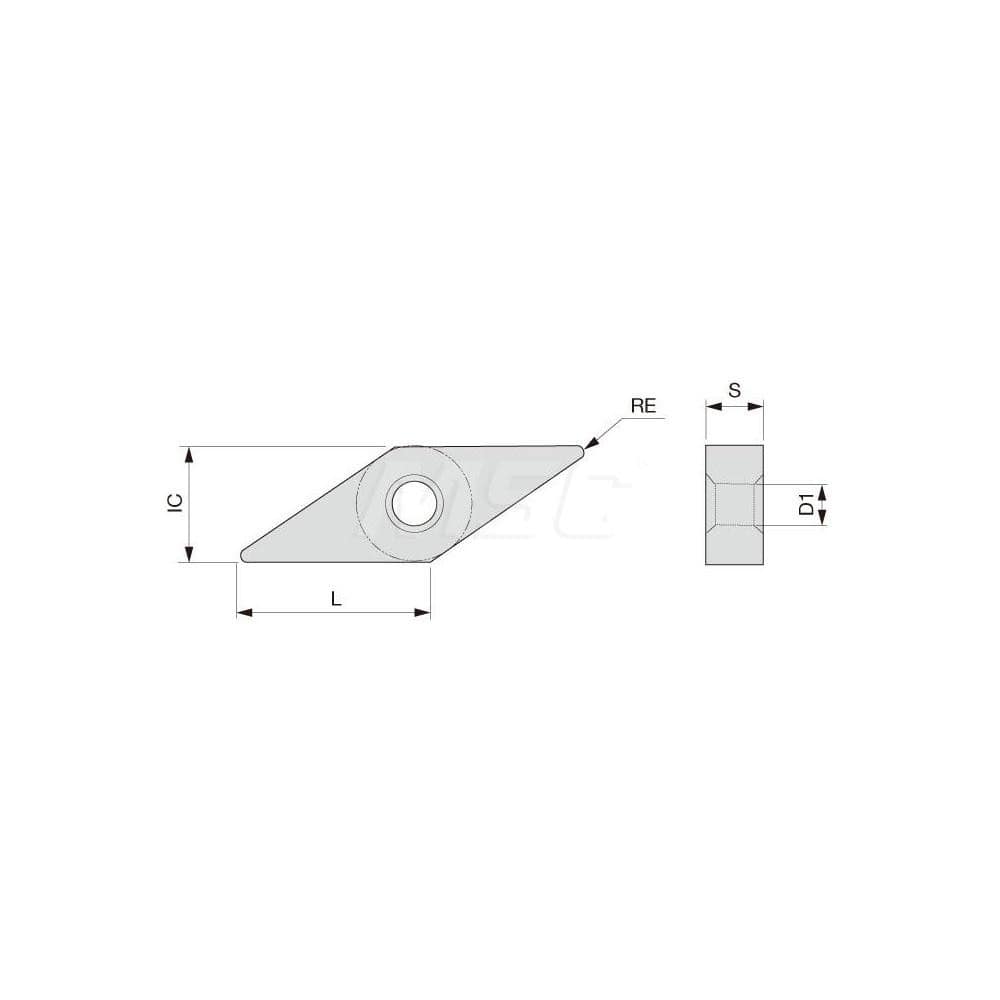

Turning Insert: VNGG160404-01 TH10, Solid Carbide Uncoated Finish, Neutral, 35.0 ° N/A Diamond, Series VNGG
Item #: 90739426
Brand: Tungaloy
Model #: 6809408
Product Specifications
| Insert Style | VNGG |
| Insert Size Code | 160404 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 3.8100 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 9.53 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNGG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | VNGG16040401TH10 |
| Iso Code | VNGG 331-01 TH10 |
| Chip Breaker | 01 |
| Coating/Finish | Uncoated |
