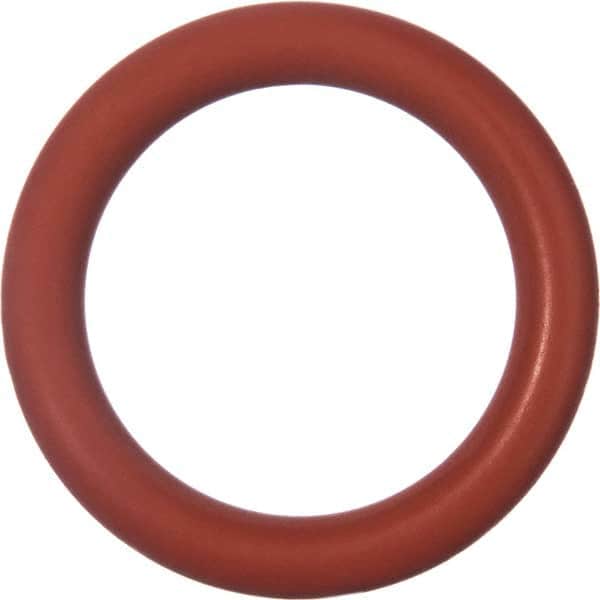

Value Collection - 13-1/2" ID x 13" OD Silicone (FDA) O-Ring - 1/4" Thick, Round Cross Section, Durometer 70
Item #: 90715129
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Silicone (FDA) |
| Dash Number | 454 |
| System of Measurement | Inch |
| Durometer | 70 |
| Durometer (Shore A) | 70A |
| Inside Diameter (Inch) | 12-1/2 |
| Inside Diameter (Decimal Inch) | 12.4750 |
| Outside Diameter (Inch) | 13 |
| Outside Diameter (Decimal Inch) | 13.0250 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2750 |
| Maximum Temperature (F) | 450.000 |
| Minimum Temperature (F) | -80.000 |
