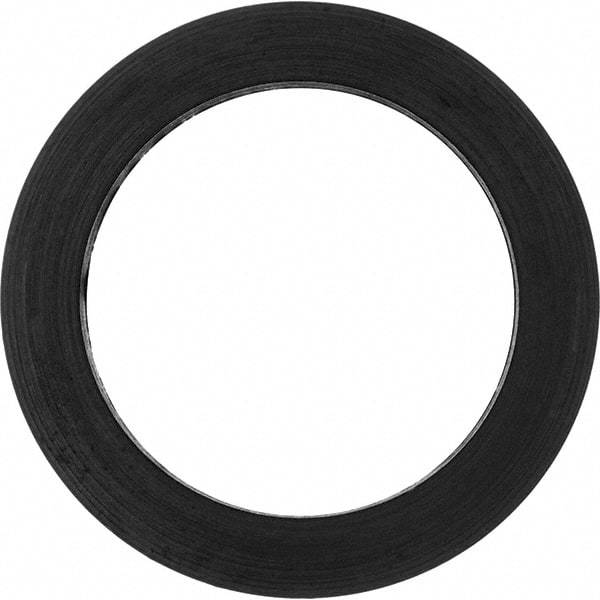

Value Collection - 2-1/4" OD Buna-N O-Ring - 3/32" Thick, Square Cross Section, Durometer 70
Item #: 90714114
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Square cross-section shapes offer good high pressure seals, but are best used in static applications. They can be used as a direct replacement for a round O-ring.
Buna-N, also known as nitrile rubber (NBR), is made of a synthetic rubber that has anti-microbial properties and is resistant to chemicals, oils, solvents, greases and petroleum-based fluids. It is resistant to abrasions, cuts, punctures, slashes and snags.
| Product Specifications | |
|---|---|
| Cross Section Shape | Square |
| Material | Buna-N |
| Dash Number | 137 |
| System of Measurement | Inch |
| Durometer | 70 |
| Durometer (Shore A) | 70A |
| Inside Diameter (Inch) | 2-1/16 |
| Inside Diameter (Decimal Inch) | 2.0500 |
| Outside Diameter (Inch) | 2-1/4 |
| Outside Diameter (Decimal Inch) | 2.2560 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.1030 |
| Maximum Temperature (F) | 250.000 |
