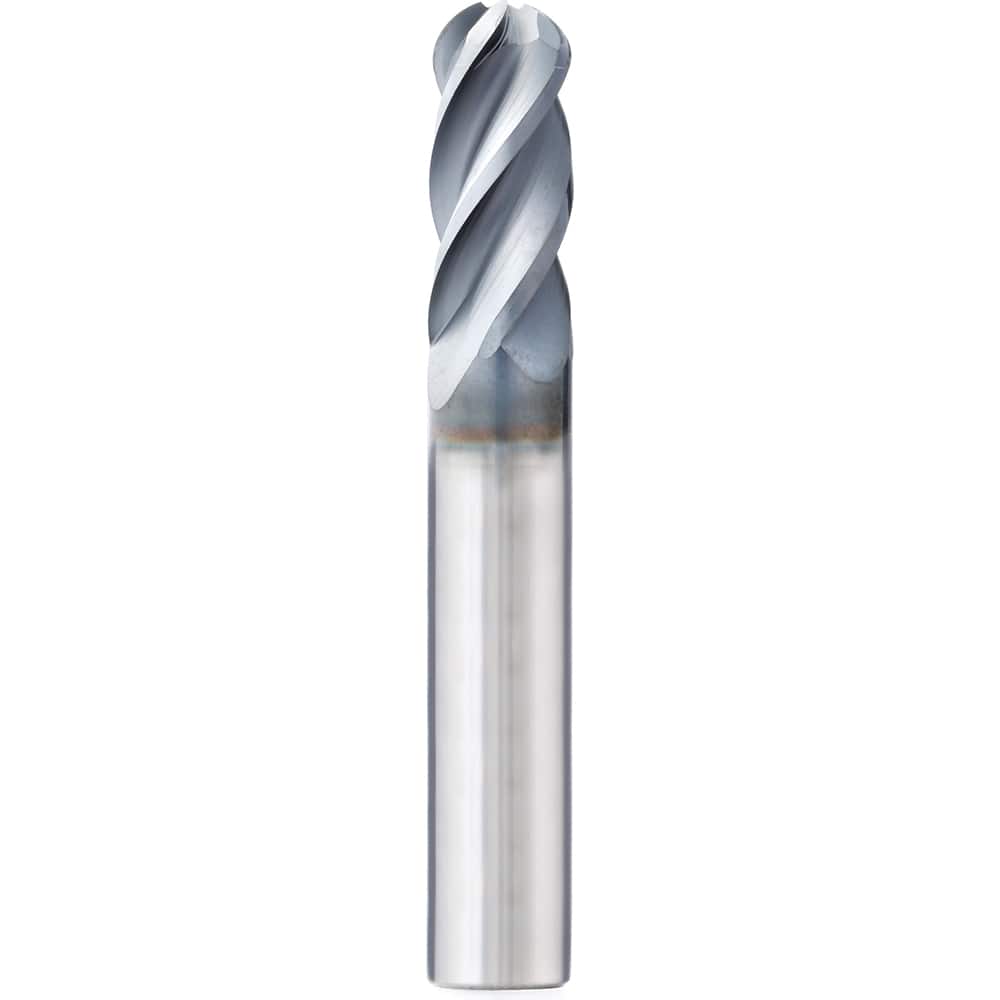

Ball End Mill: 0.3125″ Dia, 0.8125″ LOC, 4 Flute, Solid Carbide 2-1/2″ OAL, 5/16″ Shank Dia, 37 ° Helix, AlCrN Coated, Single End, Series XPVB
Item #: 90465030
Brand: Supermill
Model #: XPVB312
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Length of Cut (Inch) | 13/16 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 37 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 0.7000 to 1.0000 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | XPVB |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8125 |
| Manufacturers Catalog Number | 41009 |
