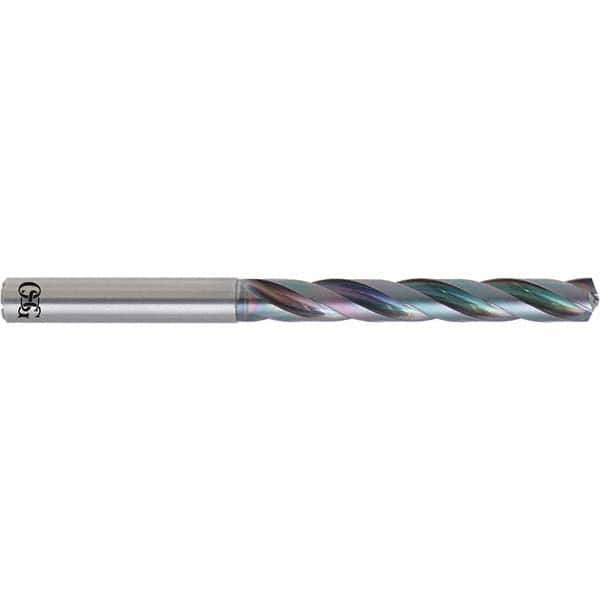

Screw Machine Length Drill Bit: 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6600
Item #: 90428350
Brand: OSG
Model #: 8720900
Product Specifications
| Drill Bit Size (mm) | 9.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 101.00 |
| Overall Length (Decimal Inch) | 3.9764 |
| Shank Diameter (mm) | 10.00 |
| Series | 6600 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Number of Margins | 1 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.022 mm |
| Flute Length (mm) | 45.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
