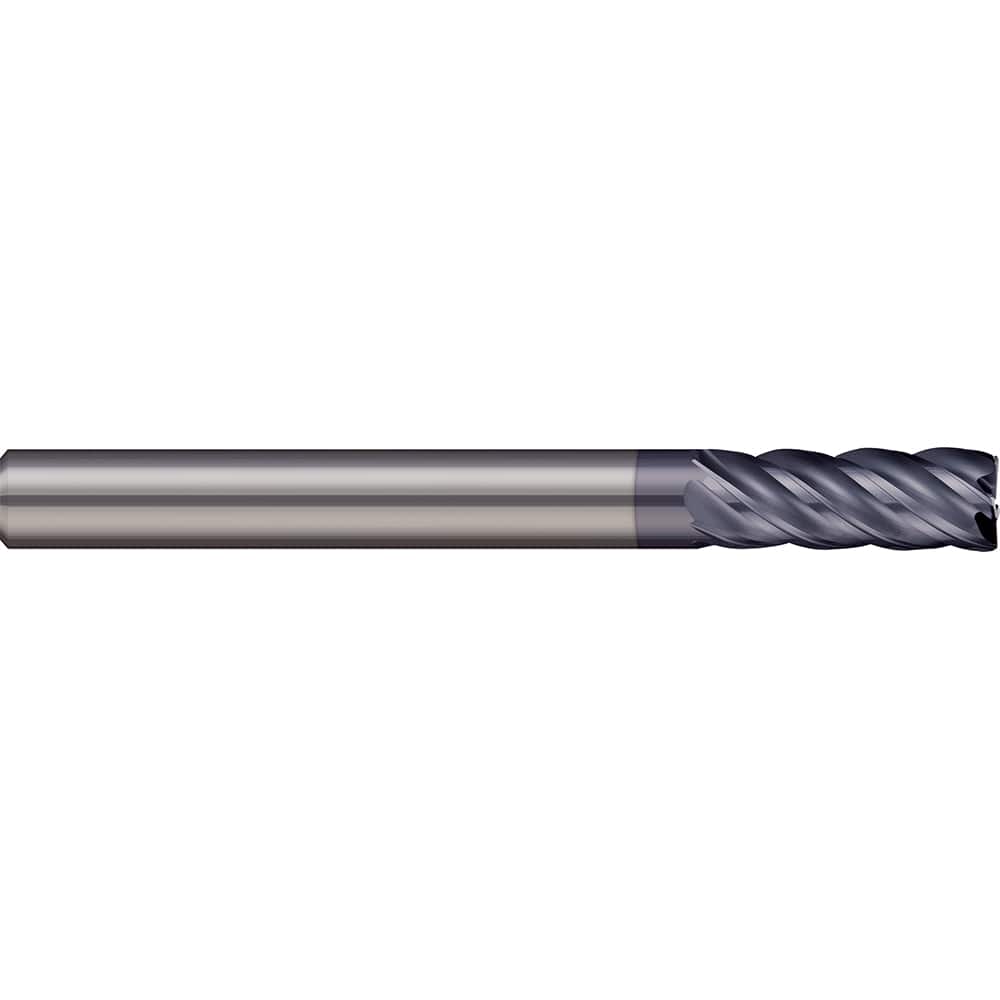

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 5
Item #: 90318015
Brand: Micro 100
Model #: VHS-375-5-020K
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 5
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | nACRo |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Shank Type | Weldon Flat |
| Series/List | End Mills for Steels & High Temperature Alloys - Corner Radius - 5 Flute - Variable Helix |
