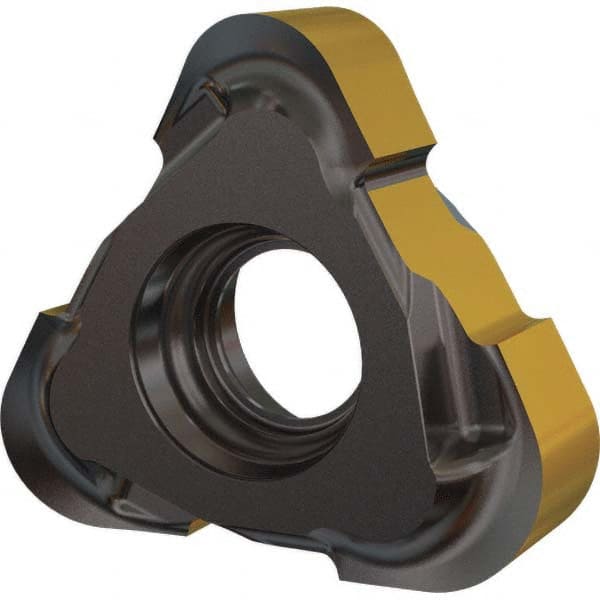

Iscar - TR6TNCU100420 IC830 Carbide Milling Insert
Item #: 90244013
Brand: Iscar
Model #: 3320872
Product Specifications
| Insert Style | TNCU |
| Insert Size | 100420 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 7.30 |
| Inscribed Circle (Decimal Inch) | 0.2870 |
| Thickness (mm) | 4.20 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutter Series Compatibility | TR6 |
