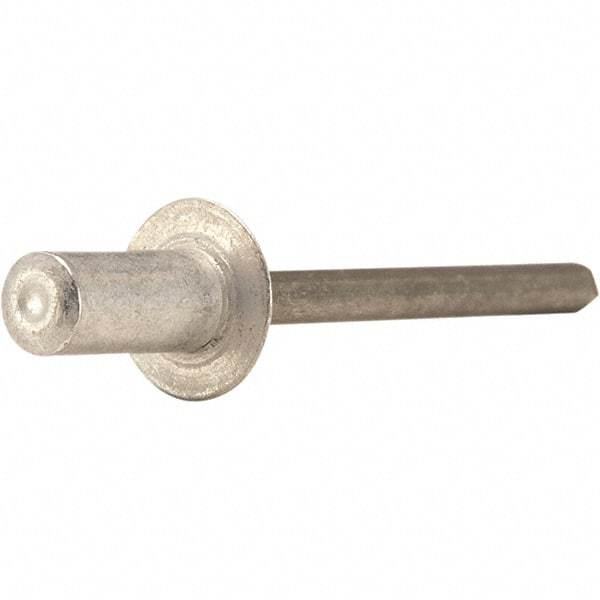

STANLEY Engineered Fastening - Size 6 Dome Head Aluminum Closed End Blind Rivet - Aluminum Mandrel, 0.251" to 3/8" Grip, 3/16" Head Diam, 0.192" to 0.196" Hole Diam,
Item #: 90201229
Brand: STANLEY Engineered Fastening
Model #: POPAD66AH
Exact Tooling IR#: 04
Features and Benefits
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Closed End |
| Head Type | Dome |
| Size Code | 6 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.2510 |
| Maximum Grip (Inch) | 3/8 |
| Head Diameter (Inch) | 3/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Rivet Material Grade | 1100 |
| Mandrel Material Grade | 5056 |
| Shear Strength (Lb.) | 220 |
| Tensile Strength (Lb.) | 310 |
| Rivet Finish/Coating | Plain/Uncoated (Rivet) |
