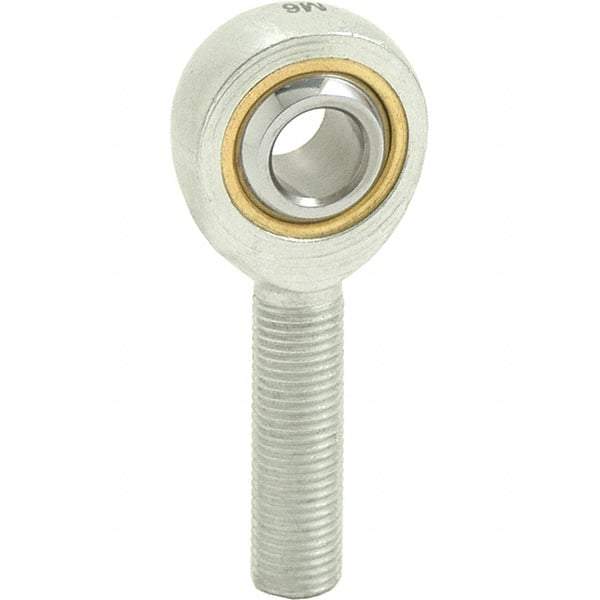

Tritan - 3/16" ID, 1-9/16" Max OD, 1,174 Lb Max Static Cap, Male Spherical Rod End - 10-32 LH, 5/16" Shank Diam, 3/4" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway - Benchmark Tooling

Tritan - 3/16" ID, 1-9/16" Max OD, 1,174 Lb Max Static Cap, Male Spherical Rod End - 10-32 LH, 5/16" Shank Diam, 3/4" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway


Item #: 90160052
Brand: Tritan
Model #: HML 3
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.1875
Inside Diameter (mm) 4.8000
Inside Diameter (Inch) 3/16
Style Male Rod End
Maximum Outside Diameter (Decimal Inch) 1.5630
Maximum Outside Diameter (mm) 39.70
Maximum Outside Diameter (Inch) 2
Maximum Outside Diameter (Inch) 1.5630
Maximum Static Load Capacity (Pounds) 1174.0
Width (Inch) 5/8
Width (Decimal Inch) 0.6250
Width (mm) 15.90
Thread Size 10-32
Material Zinc Plated Carbon Steel
Shank Diameter (mm) 7.9000
Shank Diameter (Decimal Inch) 0.3120
Shank Diameter (Inch) 0.312
Raceway Material Sintered Oil Impregnated Bronze
Shank Length (Decimal Inch) 0.7500
Shank Length (mm) 19.100
Thread Direction Left Hand
Overall Length (Inch) 1.560
Overall Length (mm) 39.6000
Overall Length (Decimal Inch) 1.5600
$15.54
