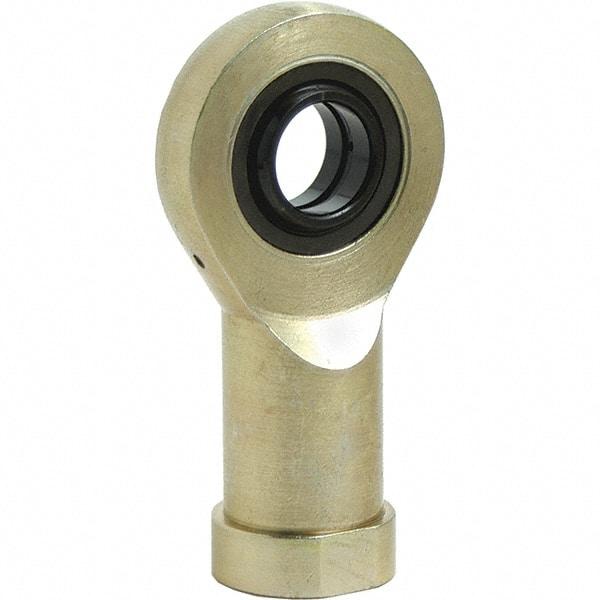

Tritan - 0.2362" ID, 1-5/12" Max OD, 1,821 Lb Max Static Cap, Female Spherical Rod End - M6 LH, 0.2362" Shank Diam, 0.4331" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 90159617
Brand: Tritan
Model #: SIL 6E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2362 |
| Inside Diameter (mm) | 152.4000 |
| Inside Diameter (Inch) | 0.236 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.4173 |
| Maximum Outside Diameter (mm) | 914.40 |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Outside Diameter (Inch) | 1.4173 |
| Maximum Static Load Capacity (Pounds) | 1821.0 |
| Width (Inch) | 0.830 |
| Width (Decimal Inch) | 0.8300 |
| Width (mm) | 21.10 |
| Thread Size | M6 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (Inch) | 0.236 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 0.4331 |
| Shank Length (mm) | 11.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 2.010 |
| Overall Length (mm) | 51.1000 |
| Overall Length (Decimal Inch) | 2.0100 |
