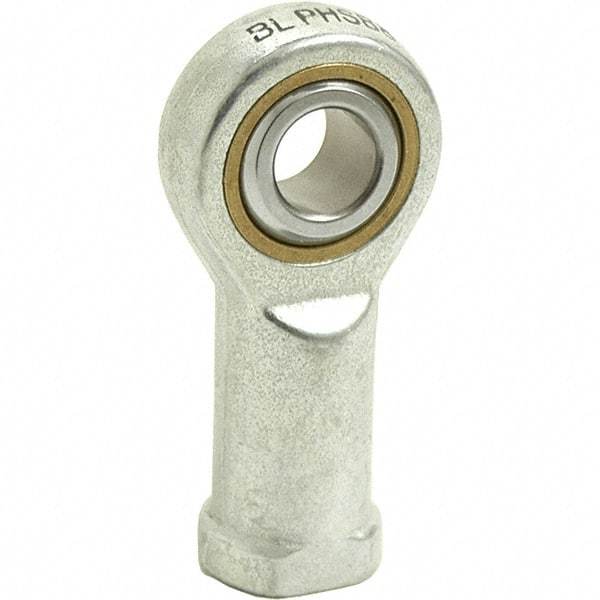

Tritan - 5/16" ID, 2-5/16" Max OD, 3,200 Lb Max Static Cap, Female Spherical Rod End - 5/16-24 LH, 7/16" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway - Benchmark Tooling

Tritan - 5/16" ID, 2-5/16" Max OD, 3,200 Lb Max Static Cap, Female Spherical Rod End - 5/16-24 LH, 7/16" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway


Item #: 90159070
Brand: Tritan
Model #: HFL 5
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.3125
Inside Diameter (mm) 8.0000
Inside Diameter (Inch) 5/16
Style Female Rod End
Maximum Outside Diameter (Decimal Inch) 2.3125
Maximum Outside Diameter (mm) 58.70
Maximum Outside Diameter (Inch) 2-5/16
Maximum Outside Diameter (Inch) 2-5/16
Maximum Static Load Capacity (Pounds) 3200.0
Width (Inch) 7/8
Width (Decimal Inch) 0.8750
Width (mm) 22.20
Thread Size 5/16-24
Material Zinc Plated Carbon Steel
Shank Diameter (mm) 11.1000
Shank Diameter (Decimal Inch) 0.4370
Shank Diameter (Inch) 0.437
Raceway Material Sintered Oil Impregnated Bronze
Shank Length (Decimal Inch) 0.6870
Shank Length (mm) 17.400
Thread Direction Left Hand
Overall Length (Inch) 1.810
Overall Length (mm) 46.0000
Overall Length (Decimal Inch) 1.8100
$15.78
