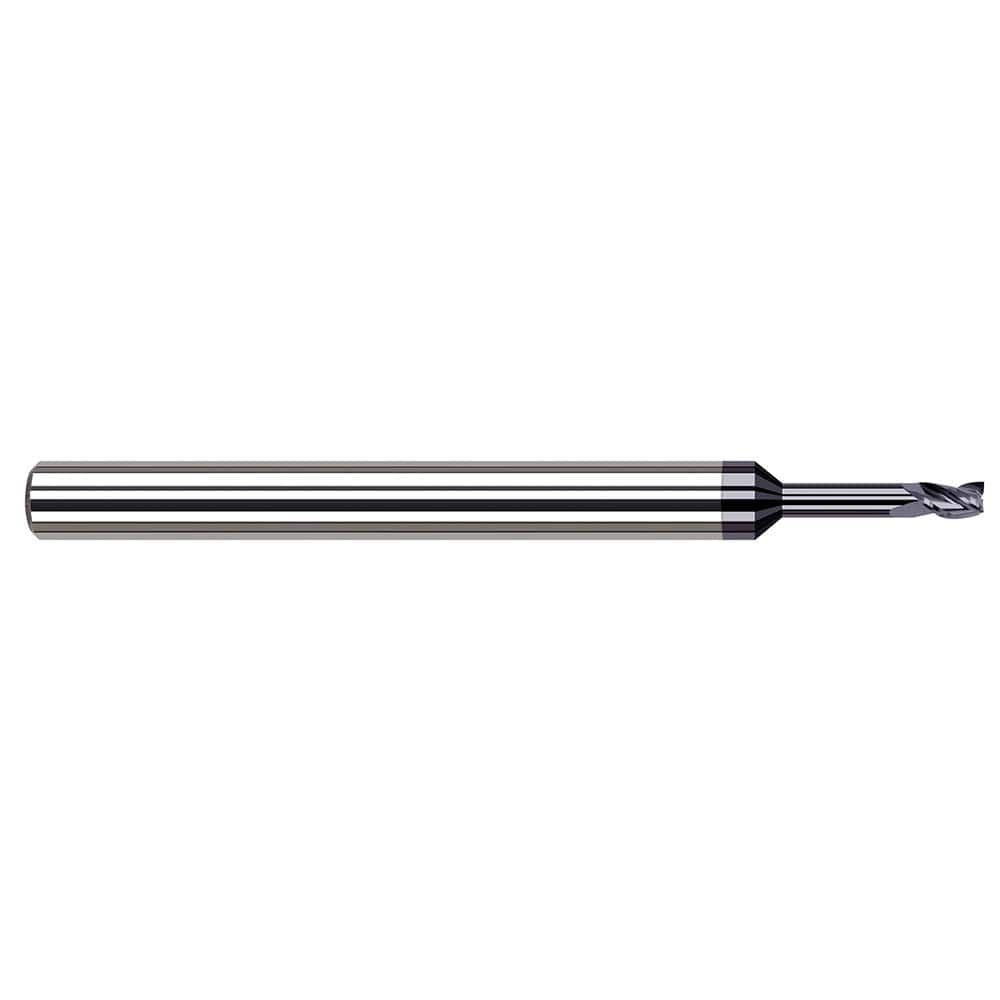

Harvey Tool - Square End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; Length of Cut (Decimal Inch): 0.2350 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 3/16
Item #: 90150525
Brand: Harvey Tool
Model #: 915110-C3
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; Length of Cut (Decimal Inch): 0.2350 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 3/16
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Length of Cut (Decimal Inch) | 0.2350 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Reach Length (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 0.7500 |
| Series/List | Variable Helix End Mills for Free Machining Steels - Square - Long Reach, Stub Flute |
