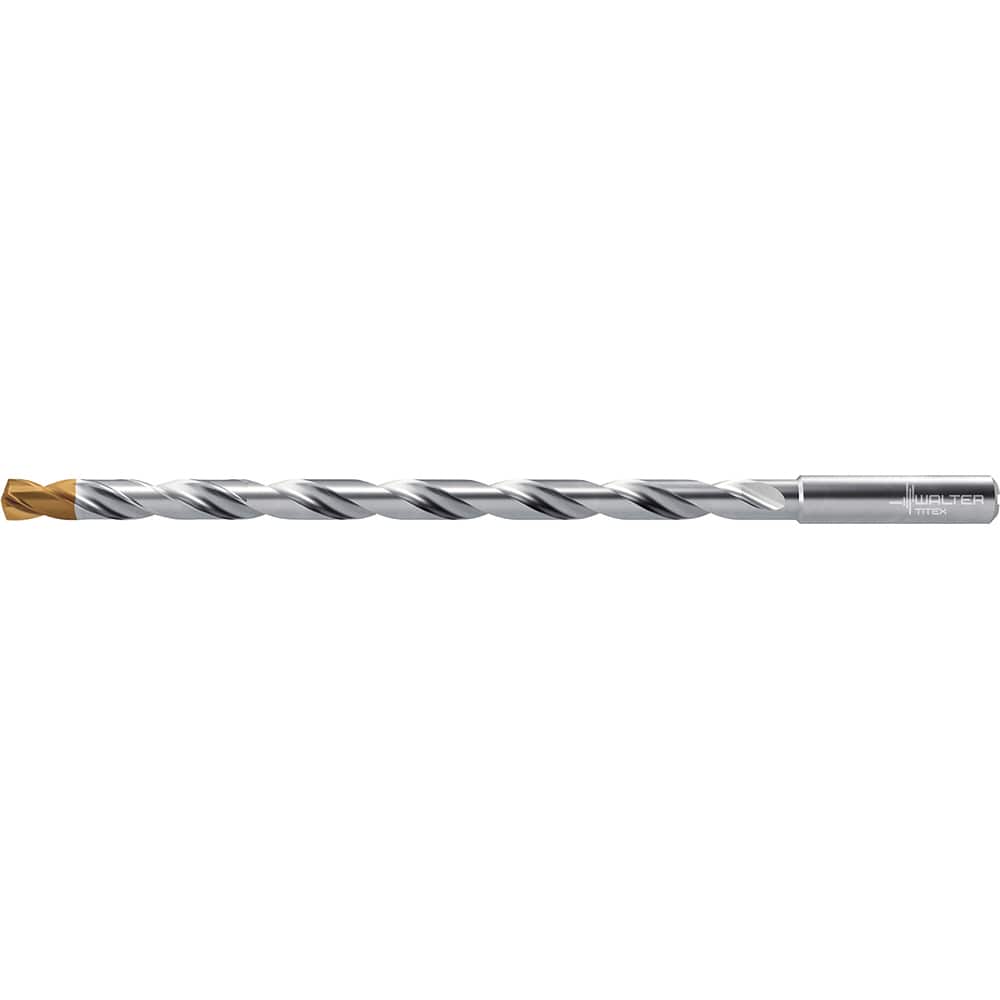

Extra Length Drill Bit: 0.1406″ Dia, 140 °, Solid Carbide - TiSiAlCrN;AlTiN Finish, 3.071″ Flute Length, 4.331″ OAL, Straight-Cylindrical Shank, Series DC160-16-A1
Item #: 90121005
Brand: Walter-Titex
Model #: 7684217
Product Specifications
| Drill Bit Size (mm) | 3.57 |
| Overall Length (mm) | 110.00 |
| Flute Length (mm) | 78.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN; TiSiAlCrN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Series | DC160-16-A1 |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Drill Point Length (mm) | 0.65 |
| Drill Point Length (Decimal Inch) | 0.0260 |
| Overall Length (Decimal Inch) | 4.3310 |
| Shank Diameter (Decimal Inch) | 0.1570 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.1020 |
| Shank Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 3.0710 |
| Maximum Drilling Depth (Decimal Inch) | 2.8350 |
| Maximum Drilling Depth (mm) | 72.00 |
