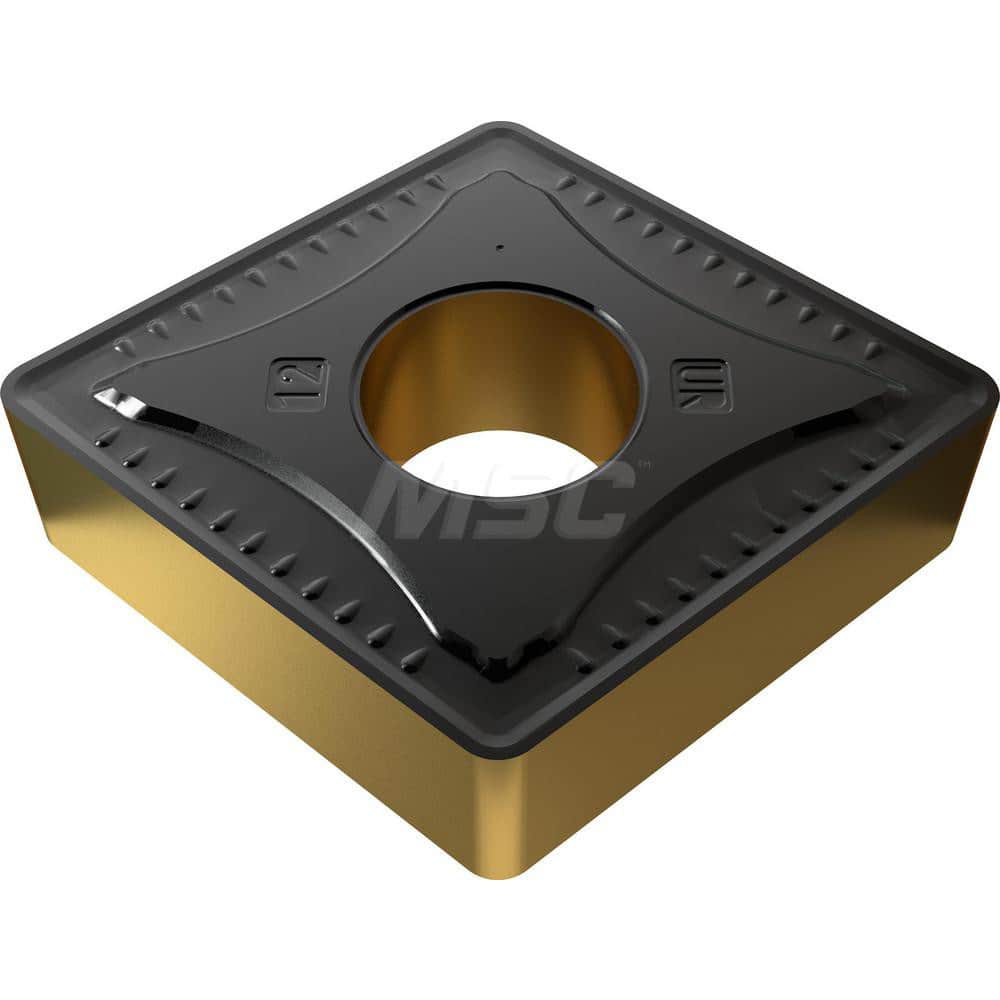

Turning Insert: CNMG190612-UR YG3030, Solid Carbide TiCN & Al2O3 Finish, 0.4720″ Long, 3/4″ Inscribed Circle, N/A Series CNMG
Item #: 90120197
Brand: YG-1
Model #: 22000699
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 190612 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG3030 |
| Inscribed Circle (Inch) | 3/4 |
| Width (Inch) | 3/4 |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 3/64 |
| Series | CNMG |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4720 |
| Chip Breaker | G |
| Coating/Finish | TiCN; Al2O3 |
