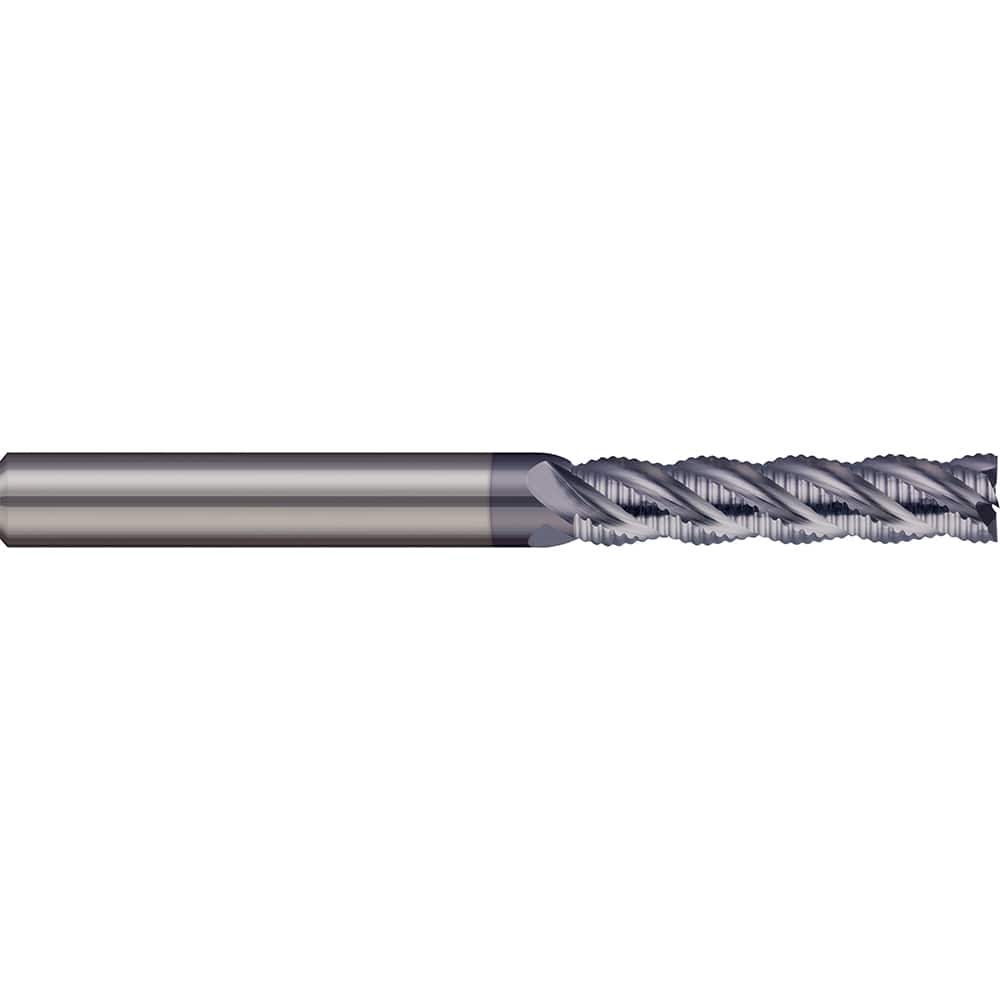

Micro 100 - Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Length of Cut (Inch): 7/8 ; Length of Cut (Decimal Inch): 0.8750 ; Material: Solid Carbide ; Finish/Coating: AlTiN
Item #: 90110636
Brand: Micro 100
Model #: SHR-375-4X
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Length of Cut (Inch): 7/8 ; Length of Cut (Decimal Inch): 0.8750 ; Material: Solid Carbide ; Finish/Coating: AlTiN
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | No |
| Chipbreaker | yes |
| Series/List | End Mills for Steels & High Temperature Alloys - Square - 4 Flute - Chipbreaker Rougher |
