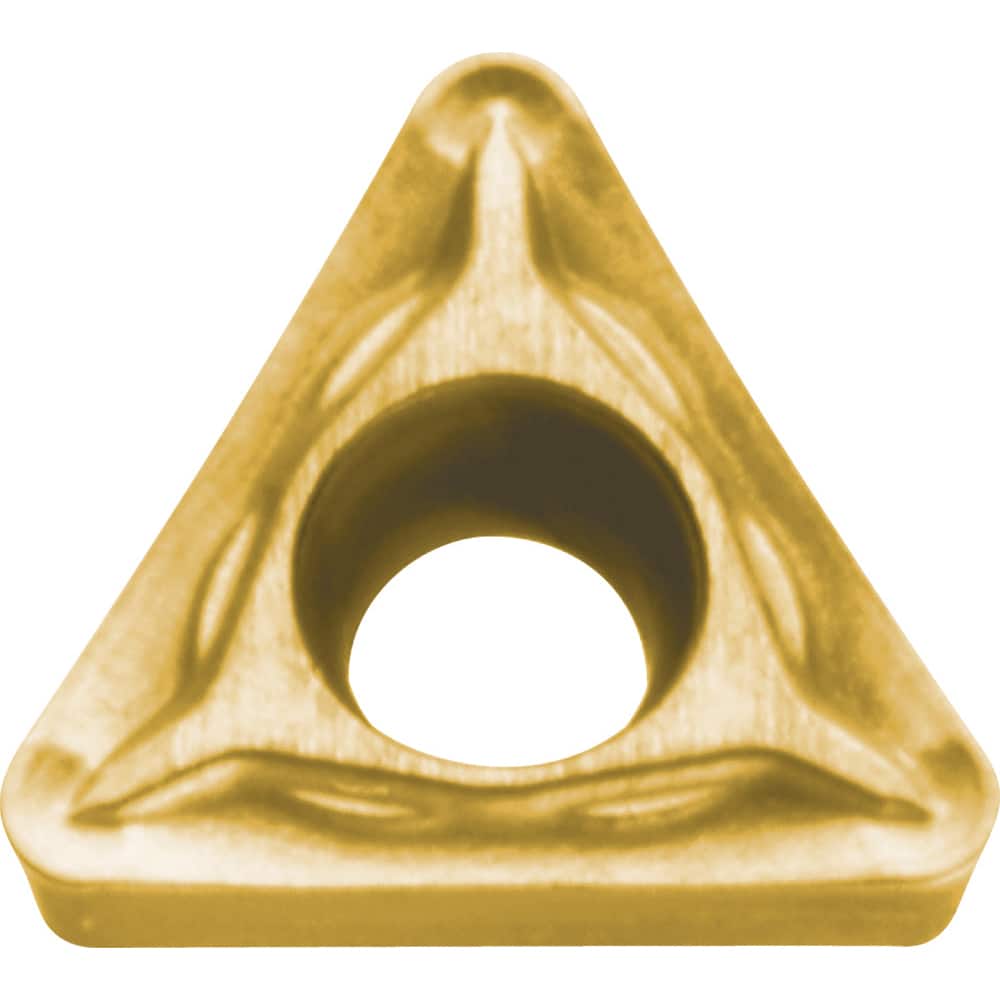

Kyocera - TCMT18151HP CA6535 Carbide Indexable Drill Insert
Item #: 90095712
Brand: Kyocera
Model #: 8858963
Product Specifications
| Insert Style | TCMT |
| Insert Size | 18151 |
| Material | Carbide |
| Manufacturer's Grade | CA6535 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (mm) | 2.3800 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Shape | Triangle |
| Primary Workpiece Material | M; S |
| Hole Diameter (mm) | 2.5000 |
| Relief Angle | 7.000 |
| Included Angle | 60 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | HP |
| Manufacturers Catalog Number | TCMT18151HPCA6535 |
| Series | SHCS Counterbores |
