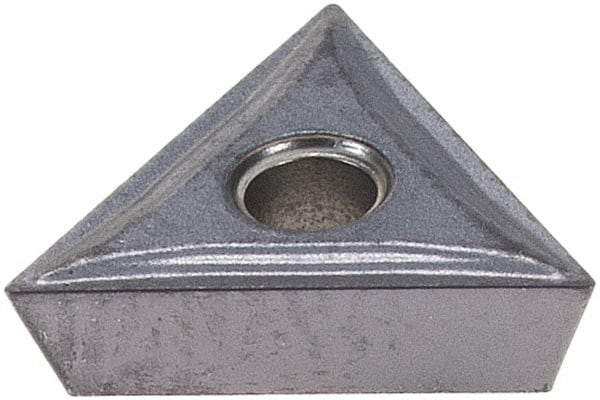

Iscar - TPMR730 Grade IC907 Carbide Turning Insert - TiAlN/TiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 89932685
Brand: Iscar
Model #: 5507593
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 730 |
| Material | Carbide |
| Length (mm) | 9.60 |
| Length (Decimal Inch) | 0.3780 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN/TiN |
| Material Grade | Submicron |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
