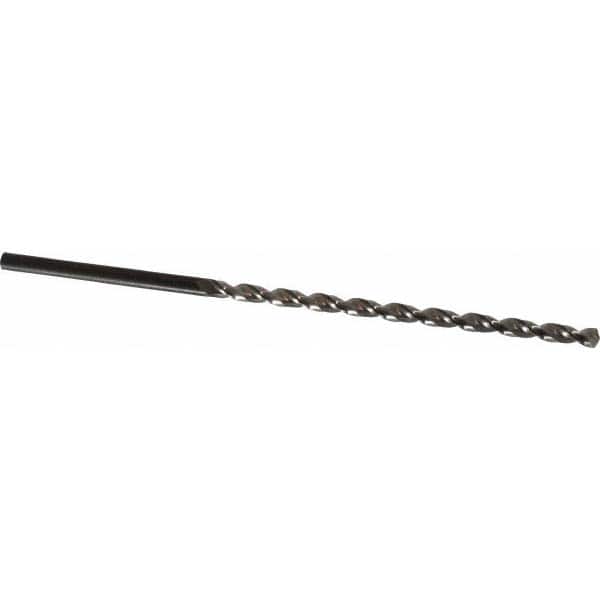

Taper Length Drill Bit: 0.1378″ Dia, 130 ° Bright/Uncoated, 2.875″ Flute Length, RH Cut, Parabolic Flute, Cylindrical Shank, Series 535
Item #: 89803233
Brand: Guhring
Model #: 9005350035000
Product Specifications
| Drill Bit Size (mm) | 3.50 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 2-7/8 |
| Flute Length (mm) | 73.03 |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 112.00 |
| Drill Bit Size (Decimal Inch) | 0.1378 |
| Flute Length (Decimal Inch) | 2.8750 |
| Flute Length x Diamter Ratio | 10xD |
| Overall Length (Decimal Inch) | 4-13/32 |
| Cutting Direction | Right Hand |
| Series | 535 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.6670 |
| Maximum Drilling Depth (mm) | 67.75 |
| Shank Length (mm) | 39.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Threaded Shank | No |
| Specification Number | DIN 340 |
| Spiral Type | Regular |
| Material Application3 | Cast Iron; Aluminum Alloy; Steel |
