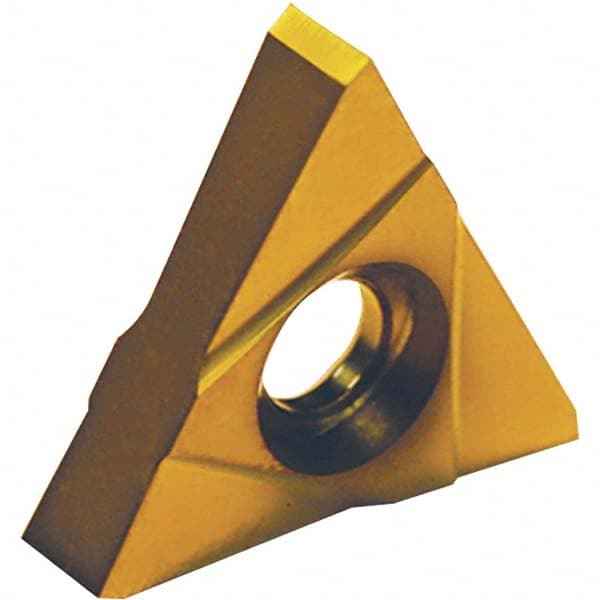

Grooving Insert: TNMC43 GP50, Solid Carbide TiN Finish, Neutral, 0.062″ Cutting Width, 0.156″ Max Depth, Series On-Edge
Item #: 89724207
Brand: Tool-Flo
Model #: C4106200N4C
Product Specifications
| Insert Style | TNMC |
| Insert Size Code | 43NGCW062 |
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GP50 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Cutting Width (mm) | 1.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | On-Edge |
| Coating Process | PVD |
| Secondary Workpiece Material | Steel |
| Iso Code | TNMC43NGC W.062 |
| Manufacturers Catalog Number | TNMC 43 NGC W.062 |
| Insert Thickness (Decimal Inch) | 0.1890 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Full Radius | No |
| Coating/Finish | TiN |
