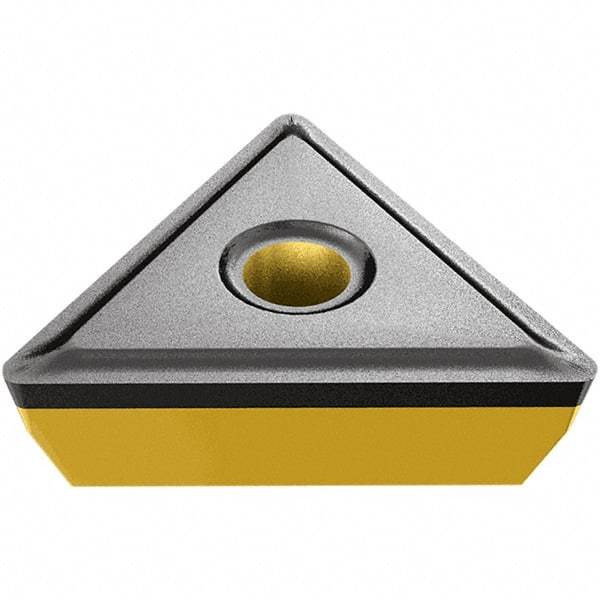

Iscar - TPMR731 Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 89707210
Brand: Iscar
Model #: 5507594
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 731 |
| Material | Carbide |
| Length (mm) | 9.60 |
| Length (Decimal Inch) | 0.3780 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
