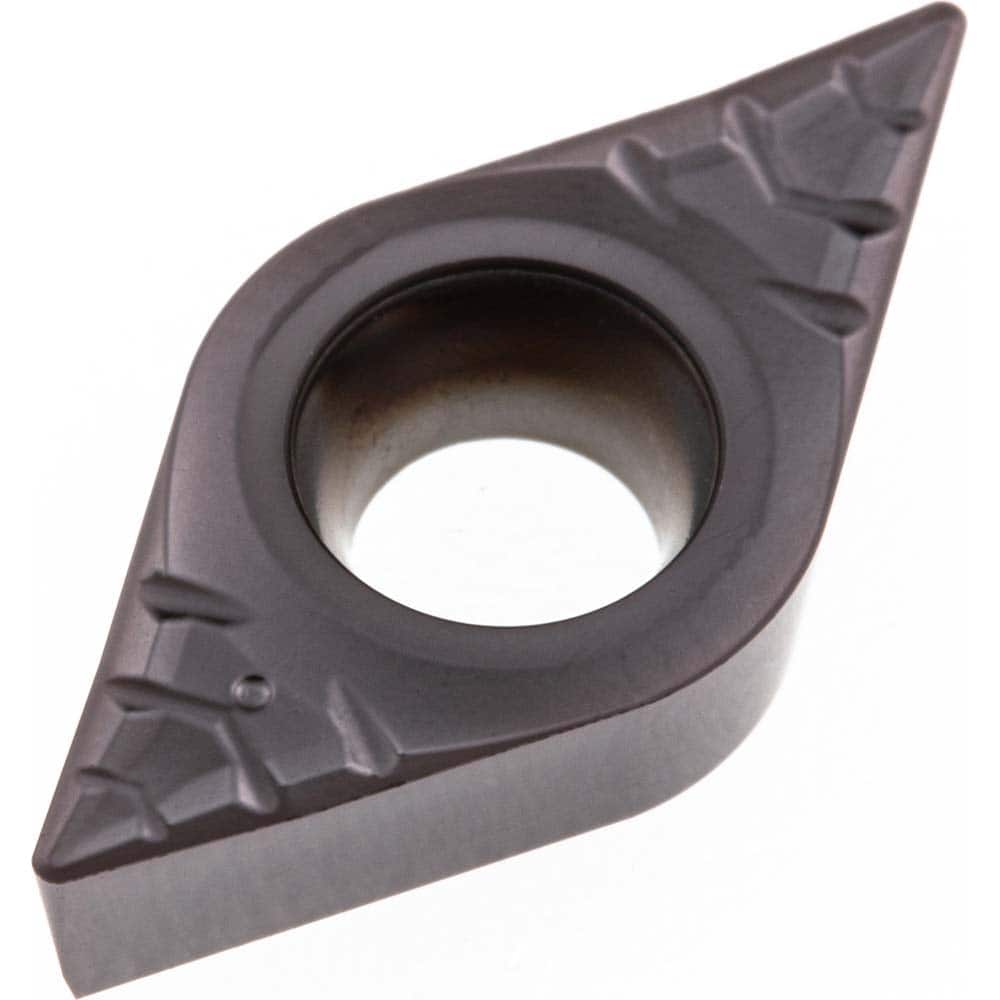

DCGT32.51FN-ACB AK20 Carbide Turning Insert Uncoated, Neutral, 9.67mm Long, 9.53mm Inscribed Circle, 0.4mm Corner Radius, 3.97mm Thick, 55° Diamond
Item #: 89670376
Brand: Arno
Model #: 14644
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 32.51 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AK20 |
| Maximum Depth of Cut (mm) | 3.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (mm) | 9.67 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; K |
| Iso Code | DCGT 11T304FN-ACB AK20 |
| Manufacturers Catalog Number | DCGT 11T304FN-ACB |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ACB |
| Cutting Edge Style | Sharp |
| Style | DCGT |
| Industry Standard Number | DCGT 11T304FN-ACB AK20 |
| Width (Mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 89670376 |
| Mfr Part # | 14644 |
| Country of OriginCountry of Origin is subject to change | Germany |
