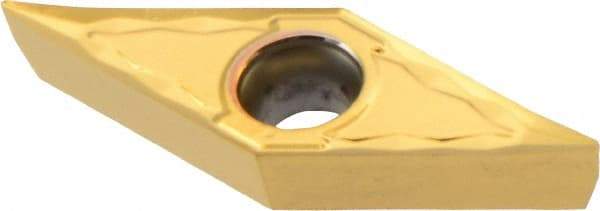

Iscar - VCGT220 AS Grade IC520 Carbide Turning Insert - TiCN/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 89531107
Brand: Iscar
Model #: 5592509
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 220 |
| Material | Carbide |
| Length (mm) | 11.10 |
| Length (Decimal Inch) | 0.4370 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC520 |
| Coating | TiCN/TiN |
| Chip Breaker | AS |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | N; S |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Shape | Diamond |
