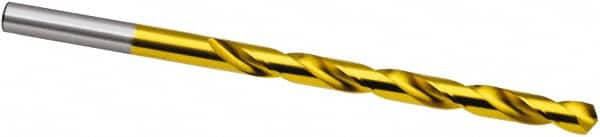

Taper Length Drill Bit: 0.2087″ Dia, 118 ° TiN Finish, RH Cut, Spiral Flute, Straight Shank, Series 667
Item #: 89412688
Brand: Guhring
Model #: 9006670053000
Product Specifications
| Drill Bit Size (mm) | 5.30 |
| Tool Material | High Speed Steel |
| Coating/Finish | TiN |
| Flute Length (mm) | 87.00 |
| Shank Type | Straight |
| Point Type | Cone Relief |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 132.00 |
| Shank Diameter (mm) | 5.30 |
| Drill Bit Size (Decimal Inch) | 0.2087 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 667 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Spiral Type | Regular |
| Material Grade | M-2 |
