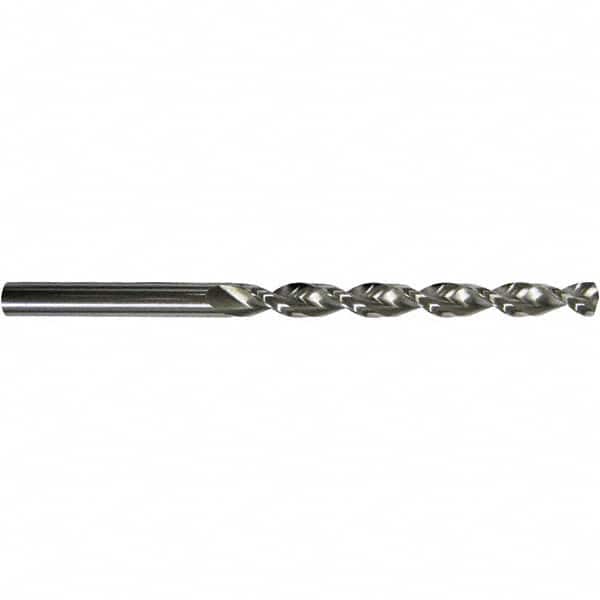

Taper Length Drill Bit: 0.2126″ Dia, 130 ° Bright/Uncoated, 3.5827″ Flute Length, 5.4724″ OAL, RH Cut, Parabolic Flute, Straight Shank, Series 501
Item #: 89353072
Brand: Guhring
Model #: 9005010054000
Product Specifications
| Drill Bit Size (mm) | 5.40 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 91.00 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (Inch) | 5.4724 |
| Overall Length (mm) | 139.00 |
| Shank Diameter (mm) | 5.40 |
| Drill Bit Size (Decimal Inch) | 0.2126 |
| Flute Length (Decimal Inch) | 3.5827 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 501 |
| Shank Diameter (Decimal Inch) | 0.2126 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 3.5827 |
| Maximum Drilling Depth (mm) | 91.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 340 |
| Material Grade | M-2 |
