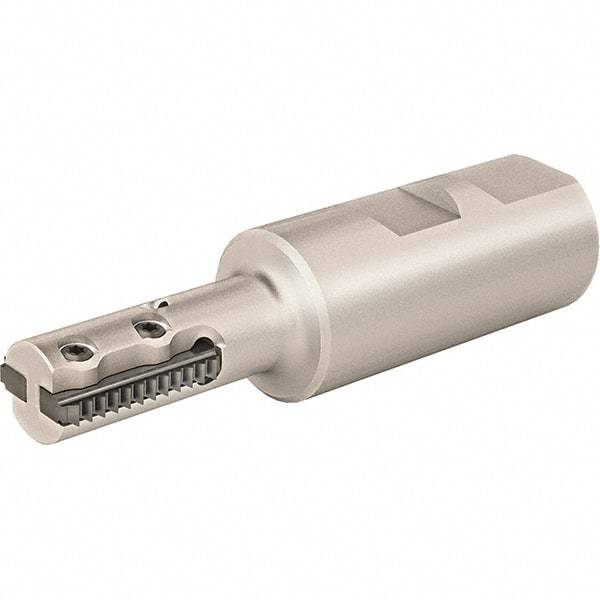

Vargus - 0.748" Cut Diam, 1-1/4" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 25S, 2 Inserts, Toolholder Style RTMC, 3.346" OAL
Item #: 89231955
Brand: Vargus
Model #: 80633
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7480 |
| Maximum Hole Depth (Decimal Inch) | 1.2500 |
| Insert Style | 25S |
| Insert Size | R25 |
| Toolholder Style | RTMC |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 3.3460 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.5910 |
