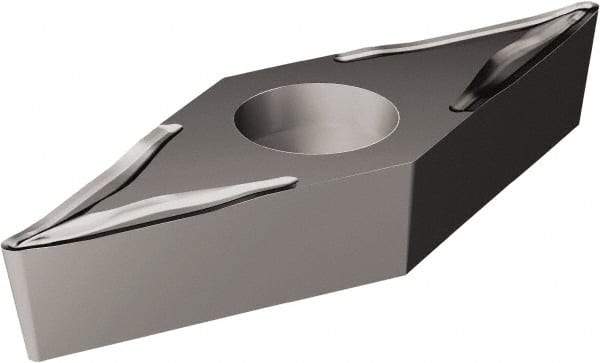

Sandvik Coromant - VBMT331 UM Grade H13A Carbide Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 89206387
Brand: Sandvik Coromant
Model #: 5755668
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.21 |
| Length (Decimal Inch) | 0.6380 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | UM |
| Insert Length (Decimal Inch) | 0.6380 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6538 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBMT 16 04 04-UM H13A |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
